{{handelsmerk}} MT215DW01 V.0 datablad, spesifikasie, aandele, toepassing www.looklcd-za.com
LookLCD LookLCD

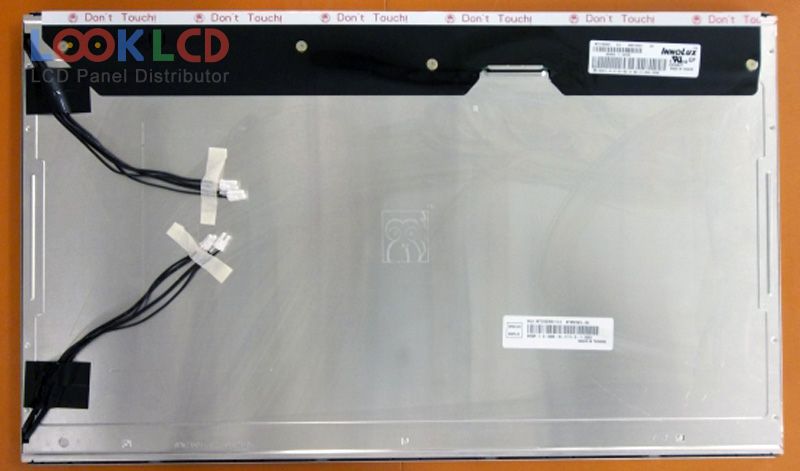

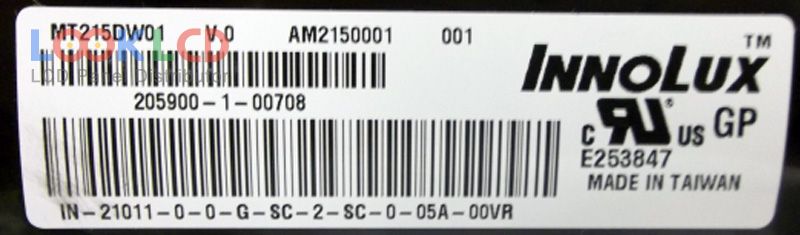

MT215DW01 V.0

MT215DW01 V.0
MT215DW01 V.0
MT215DW01 V.0 thumb MT215DW01 V.0 thumb
Handelsmerk
Innolux
Grootte
21.5
Toepassing
DMPC
Resolusie
1920×1080
Samestelling
LCM
Helderheid
300
CR
1000:1
Kleure
16.7M
Agterlig
CCFL
Koppelvlak
LVDS
In Stock
7992
Spesifikasies

Onderdeel nommer MT215DW01 V.0
HandelsmerkInnolux
Grootte21.5
ToepassingDMPC
Resolusie1920×1080
SamestellingLCM
Helderheid300
CR1000:1
Kleure16.7M
AgterligCCFL
KoppelvlakLVDS
paneel handelsmerkINNOLUX
paneel modelMT215DW01 V.0
paneel tipe a-Si TFT-LCD , LCM
paneel grootte21.5 inch
resolusie1920(RGB)×1080 , FHD
vertoonmodusTN, Normally White, Transmissive
aktiewe area476.64×268.11 mm
buitelyn495.6×292.2×16.85 mm
oppervlakAntiglare, Hard coating (3H)
helderheid300 cd/m² (Typ.)
kontras verhouding1000:1 (Typ.)
kleure vertoon16.7M (6-bit + Hi-FRC), CIE193172%
reaksie tyd1.5/3.5 (Typ.)(Tr/Td)
kykhoek85/85/80/80 (Min.)(CR≥10)(L/R/U/D)
frekwensie60Hz
tipe lamp4 pcsCCFLWithout Driver
sein koppelvlakLVDS (2 ch, 8-bit), 30 pins
insetspanning5.0V (Typ.)
aansoekDMPC
Familie Model
G215HVN01.0 S03 AUO 21.5 1920×1080
LC215DT4A PANDA 21.5 1920×1080
LM215WF3-SLA2 LG Display 21.5 1920×1080
LM215WF5-SLA1 LG Display 21.5 1920×1080
M215HGE-L21 Innolux 21.5 1920×1080
M215HGK-L30 Innolux 21.5 1920×1080
M215HW02 V0 AUO 21.5 1920×1080
MT215DW01 V.0 Innolux 21.5 1920×1080
MT215DW01 V.1 Innolux 21.5 1920×1080
RX215-C10 ROGIN 21.5 1920×1080
