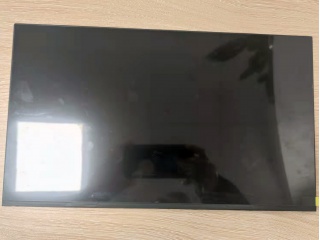

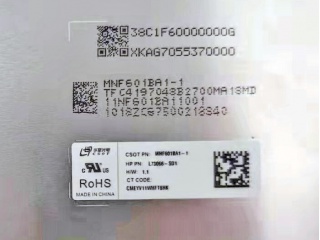

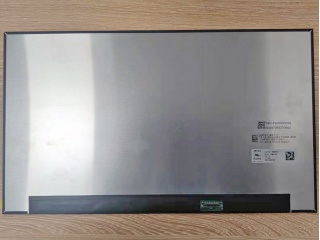

| Onderdeel nommer | MNF601BA1-1 |
| Handelsmerk | CSOT |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | LTPS TFT-LCD , LCM |
| Helderheid | |
| CR | 1500:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | CSOT |
| diagonale grootte | 15.6 inch |
| pixel formaat | 1920(RGB)×1080 [FHD] 141PPI |
| aktiewe area | 344.16(H)×193.59(V) mm |
| ring area | - |
| helderheid | 400 cd/m² (Typ.) |
| kyk rigting | Symmetry |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| ondersteun kleur | 16.7M 98% sRGB |
| vorm styl | Slim (PCBA Bent, T≤3.0mm) |
| raamkoers | 60Hz |
| koppelvlak tipe | eDP (2 Lanes) , eDP1.4 , HBR1 (2.7G/lane) , 30 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | MNF601BA1-1 (CSO1506) |
| tipe | LTPS TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 319.16(H)×204.49(V) ×2.6(D) mm |
| behandeling | Antiglare |
| kontras verhouding | 1500:1 (Typ.) (TM) |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| bedryfsmodus | FFS, Normally Black, Transmissive |
| Ligbron | WLED [9S6P] , 15K hours , With LED Driver |
| ontwerp vir | Laptop |
| raakpaneel | Without |
