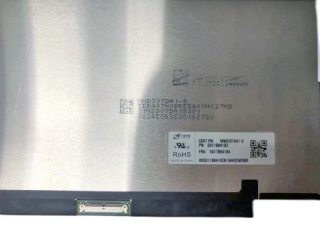

| Onderdeel nommer | MND307DA1-8 |
| Handelsmerk | CSOT |
| Grootte | 13.3 |
| Toepassing | Laptop |
| Resolusie | 2560×1600 |
| Samestelling | LTPS TFT-LCD , LCM |
| Helderheid | |
| CR | 1500:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| paneel handelsmerk | CSOT |
| paneel grootte | 13.3" |
| resolusie | 2560(RGB)×1600, WQXGA, 227PPI |
| vertoon area | 286.08(W)×178.8(H) mm |
| omtrek grootte | 291.08(W)×195.3(H) ×2.4(D) mm |
| helderheid | 300 cd/m² (Typ.) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 16.7M 99% sRGB |
| frekwensie | 60Hz |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| sein koppelvlak | eDP (4 Lanes) , HBR1 (2.7G/lane) , 40 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| paneel model | MND307DA1-8 |
| paneel tipe | LTPS TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | Antiglare |
| kontras verhouding | 1500:1 (Typ.) (TM) |
| vertoonmodus | FFS, Normally Black, Transmissive |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| tipe lamp | WLED , 15K hours , With LED Driver |
| raakskerm | Without |
| aansoek | Laptop |
| B133HAN02.5 | AUO | 13.3 | 1920×1080 |
| B133XW04 V0 | AUO | 13.3 | 1366×768 |
| G133I1-L01 | Innolux | 13.3 | 1280×800 |
| HV133WX1-100 | HYDIS | 13.3 | 1280×800 |
| LP133WH1-TLB1 | LG Display | 13.3 | 1366×768 |
| LP133WH2-TLN4 | LG Display | 13.3 | 1366×768 |
| LP133X7-F2IB | LG Display | 13.3 | 1024×768 |
| LT133X8-122 | Samsung | 13.3 | 1024×768 |
| LTN133AT01-001 | Samsung | 13.3 | 1280×800 |
| LTN133AT23-001 | Samsung | 13.3 | 1366×768 |
