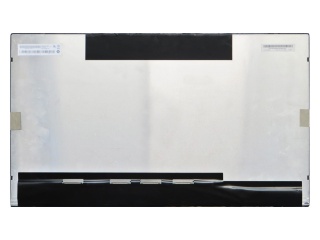

| Onderdeel nommer | M270DTN01.00E |
| Handelsmerk | AUO |
| Grootte | 27.0 |
| Toepassing | Desktop Monitor Gami |
| Resolusie | 2560×1440 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | 18S4P |
| Koppelvlak | LVDS |
| paneel handelsmerk | AUO |
| paneel model | M270DTN01.00E |
| paneel grootte | 27.0" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 2560(RGB)×1440, Quad-HD, 108PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 596.736(W)×335.664(H) mm |
| ring opening | 601.6(W)×340.15(H) mm |
| omtrek grootte | 613.6(W)×356.85(H) ×10.9(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 350 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kykhoek | 85/85/80/80 (Typ.)(CR≥10) |
| vertoonmodus | TN, Normally White, Transmissive |
| beste uitsig op | - |
| reaksie tyd | 3.5/1.5 (Typ.)(Tr/Td) |
| kleure vertoon | 16.7M 72% NTSC |
| tipe lamp | 18S4P WLED , 30K hours , Without Driver |
| frekwensie | 165Hz |
| raakskerm | Without |
| paneel gewig | 2.20/2.31Kgs (Typ./Max.) |
| aansoek | Desktop Monitor Gaming |
| sein koppelvlak | LVDS (8 ch, 8-bit) , 130 pins Connector |
| insetspanning | 12.0V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
