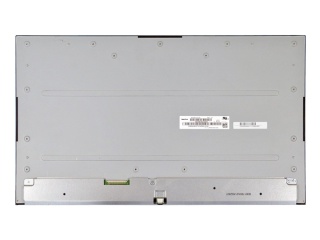

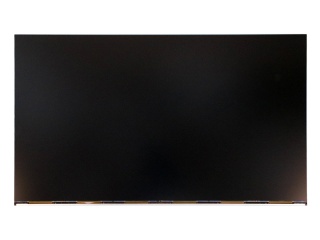

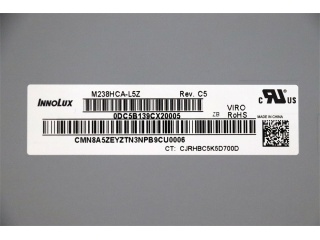

| Onderdeel nommer | M238HCA-L5Z |
| Handelsmerk | Innolux |
| Grootte | 23.8 |
| Toepassing | Desktop Monitor |
| Resolusie | 1920×1080 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | 4 |
| Koppelvlak | |
| vervaardiger | Innolux |
| model naam | M238HCA-L5Z |
| skerm grootte | 23.8 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 1920(RGB)×1080 (FHD) 92PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 527.04 × 296.46 (H×V) |
| buitelyn (mm) | 535 × 313 × 13 (H×V×D) |
| ring area (mm) | - |
| behandeling | Antiglare (Haze 25%), Hard coating (3H) |
| helderheid | 250 cd/m² (Typ.) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| reaksie | 8/7 (Typ.)(Tr/Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | AAS, Normally Black, Transmissive |
| kleurdiepte | 16.7M 72% NTSC |
| agterlig | 4 strings WLED , 40K hours , No Driver |
| massa | 2.27Kgs (Typ.) |
| gebruik vir | Desktop Monitor |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
