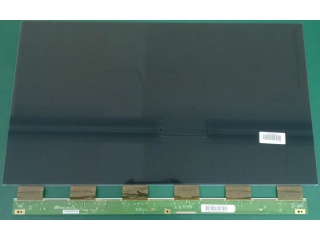

| Onderdeel nommer | M236HJJ-P02 Rev.C3 |
| Handelsmerk | Innolux |
| Grootte | 23.6 |
| Toepassing | Desktop Monitor |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD , CELL |
| Helderheid | |
| CR | 3000:1 |
| Kleure | 16.7M |
| Agterlig | No |
| Koppelvlak | LVDS |
| paneel handelsmerk | Innolux |
| paneel grootte | 23.6" |
| resolusie | 1920(RGB)×1080, FHD, 93PPI |
| vertoon area | 521.28(W)×293.22(H) mm |
| omtrek grootte | 534.28(W)×306.252(H) mm |
| helderheid | 0 cd/m² |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| glas diepte | - |
| kleure vertoon | 16.7M 72% NTSC |
| frekwensie | 60Hz |
| bestuurder ic | COF Built-in 6 source chips |
| paneel gewig | 512/530g (Typ./Max.) |
| sein koppelvlak | LVDS (2 ch, 8-bit) , 30 pins Connector |
| insetspanning | 5.0V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| paneel model | M236HJJ-P02 Rev.C3 |
| paneel tipe | a-Si TFT-LCD , CELL |
| pixel formaat | RGB Vertical Stripe |
| ring opening | - |
| oppervlak | Antiglare (Haze 25%), Hard coating (3H) |
| kontras verhouding | 3000:1 (Typ.) (TM) |
| vertoonmodus | Super MVA, Normally Black, Transmissive |
| reaksie tyd | 25 (Typ.)(G to G) |
| deurlaatbaarheid | 4.6% (Typ.)(with Polarizer) |
| tipe lamp | No B/L |
| raakskerm | Without |
| aansoek | Desktop Monitor |
