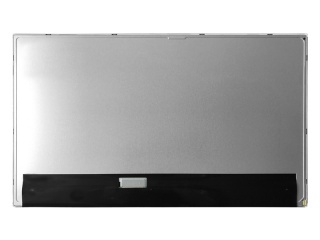

M215HJJ-L30 Rev.C3

M215HJJ-L30 Rev.C3
M215HJJ-L30 Rev.C3 thumb
Handelsmerk
Innolux
Grootte
21.5
Toepassing
Desktop Monitor Indu
Resolusie
1920×1080
Samestelling
a-Si TFT-LCD, LCM
Helderheid
CR
3000:1
Kleure
16.7M
Agterlig
WLED
Koppelvlak
In Stock
13220
Spesifikasies

Onderdeel nommer M215HJJ-L30 Rev.C3
HandelsmerkInnolux
Grootte21.5
ToepassingDesktop Monitor Indu
Resolusie1920×1080
Samestellinga-Si TFT-LCD, LCM
Helderheid
CR3000:1
Kleure16.7M
AgterligWLED
Koppelvlak
handelsmerkInnolux
modelM215HJJ-L30 Rev.C3
diagonale grootte21.5 inch
tipea-Si TFT-LCD, LCM
pixel formaat1920(RGB)×1080  [FHD]  102PPI
konfigurasieRGB Vertical Stripe
aktiewe area476.064(H)×267.786(V) mm
buitelyn dof.495.6(H)×292.2(V) ×11.5(D) mm
ring area479.84(H)×271.3(V) mm
behandelingAntiglare (Haze 25%), Hard coating (3H)
helderheid250 cd/m² (Typ.)
kontras verhouding3000:1 (Typ.) (TM)
kyk rigtingSymmetry
reaksie tyd20/5 (Typ.)(Tr/Td)
kykhoek89/89/89/89 (Typ.)(CR≥10)
bedryfsmodusMVA, Normally Black, Transmissive
ondersteun kleur16.7M   72% NTSC
LigbronWLED  [4 strings] , 40K hours , W/O Driver
gewig1.91/2.10Kgs (Typ./Max.)
ontwerp virDesktop Monitor Industrial
raamkoers60Hz
raakpaneelWithout
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Familie Model
LM215WF4-TLE1 LG Display 21.5 1920×1080
LM215WF4-TLE7 LG Display 21.5 1920×1080
LTM215HT05 Samsung 21.5 1920×1080
M215H1-L03 Innolux 21.5 1920×1080
M215HGE-L21 Innolux 21.5 1920×1080
M215HJJ-L30 Rev.B1 Innolux 21.5 1920×1080
M215HJJ-L30 Rev.C1 Innolux 21.5 1920×1080
M215HW01 V5 AUO 21.5 1920×1080
M215HW03 V1 AUO 21.5 1920×1080
T215HVN01.1 AUO 21.5 1920×1080
