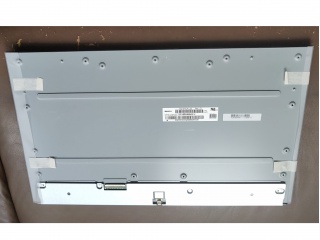

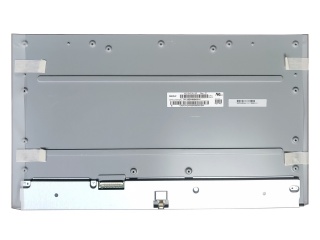

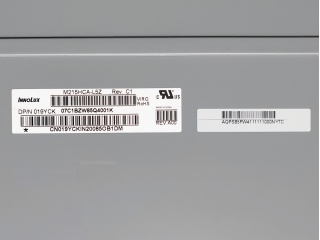

| Onderdeel nommer | M215HCA-L5Z |
| Handelsmerk | Innolux |
| Grootte | 21.5 |
| Toepassing | Desktop Monitor |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | 4 |
| Koppelvlak | LVDS |
| paneel handelsmerk | Innolux |
| paneel model | M215HCA-L5Z |
| paneel grootte | 21.5" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1920(RGB)×1080, FHD, 102PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 476.064(W)×267.786(H) mm |
| ring opening | - |
| omtrek grootte | 484.464(W)×284.486(H) ×13.4(D) mm |
| oppervlak | Antiglare (Haze 25%), Hard coating (3H) |
| helderheid | 250 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| vertoonmodus | AAS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 8/7 (Typ.)(Tr/Td) |
| kleure vertoon | 16.7M 72% NTSC |
| tipe lamp | 4 strings WLED , 30K hours , Without Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | 1.82±0.18Kgs |
| aansoek | Desktop Monitor |
| sein koppelvlak | LVDS (2 ch, 8-bit) , 30 pins Connector |
| insetspanning | 5.0V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
