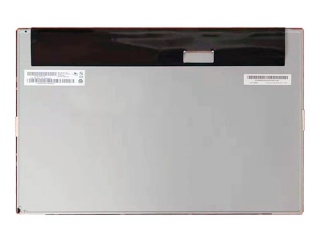

| Onderdeel nommer | M190PW01 V80K |
| Handelsmerk | AUO |
| Grootte | 19.0 |
| Toepassing | Desktop Monitor |
| Resolusie | 1440×900 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | 11S4P |
| Koppelvlak | LVDS |
| vervaardiger | AUO |
| skerm grootte | 19.0 inch |
| pixel nommer | 1440(RGB)×900 (WXGA+) 89PPI |
| aktiewe area (mm) | 408.24 × 255.15 (H×V) |
| ring area (mm) | 412.24 × 259.15 (H×V) |
| helderheid | 250 cd/m² (Typ.) |
| kykhoek | 85/85/80/80 (Typ.)(CR≥10) |
| goeie uitsig by | - |
| kleurdiepte | 16.7M 72% NTSC |
| massa | 1.52Kgs (Typ.) |
| herlaaitempo | 60Hz |
| sein tipe | LVDS (2 ch, 8-bit) , 30 pins Connector |
| spanningstoevoer | 5.0V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model naam | M190PW01 V80K |
| tipe skerm | LCM , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 428 × 278 × 10.8 (H×V×D) |
| behandeling | Antiglare, Hard coating (3H) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| reaksie | 3.5/1.5 (Typ.)(Tr/Td) ms |
| werksmodus | TN, Normally White, Transmissive |
| agterlig | 11S4P WLED , 30K hours , No Driver |
| gebruik vir | Desktop Monitor |
| raakskerm | Without |
| HSD190MEN3-A00 | HannStar | 19.0 | 1280×1024 |
| HT190WG1-602 | BOE | 19.0 | 1440×900 |
| LB190E02-SL02 | LG Display | 19.0 | 1280×1024 |
| LQ190E1LX75 | SHARP | 19.0 | 1280×1024 |
| LTB190E3-L01 | Samsung | 19.0 | 1280×1024 |
| M190PW01 V0 | AUO | 19.0 | 1440×900 |
| M190PW01 V6 | AUO | 19.0 | 1440×900 |
| M190PW01 V8 | AUO | 19.0 | 1440×900 |
| MT190AW02 V.0 | Innolux | 19.0 | 1440×900 |
| MT190EN02 V.Y | Innolux | 19.0 | 1280×1024 |
