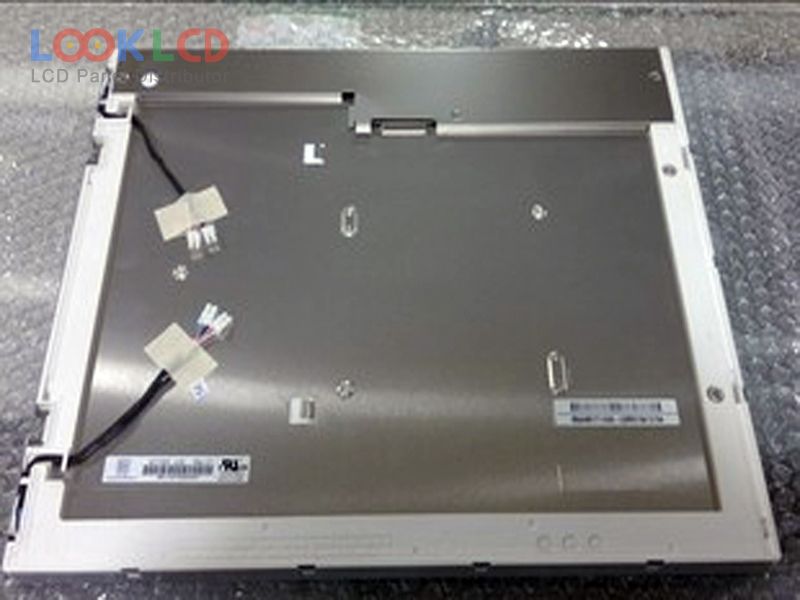

| Onderdeel nommer | M170E5-L08 |
| Handelsmerk | Innolux |
| Grootte | 17.0 |
| Toepassing | DMPC |
| Resolusie | 1280×1024 |
| Samestelling | LCM |
| Helderheid | 300 |
| CR | 500:1 |
| Kleure | 16.2M |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | CMO |
| paneel model | M170E5-L08 3 Compatible model |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 17.0 inch |
| resolusie | 1280(RGB)×1024 , SXGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 337.92×270.336 mm |
| buitelyn | 358.5×296.5×17.5 mm |
| oppervlak | Antiglare (Haze 25%), Hard coating (3H) |
| helderheid | 300 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) |
| kleure vertoon | 16.2M (6-bit + FRC) |
| reaksie tyd | 2/8 (Typ.)(Tr/Td) |
| kykhoek | 75/75/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 4 pcsCCFLWithout Driver |
| sein koppelvlak | LVDS (2 ch, 8-bit), 30 pins |
| insetspanning | 5.0V (Typ.) |
| aansoek | DMPC |
| M170E5-L08 | Innolux | 17.0 | 1280×1024 |
| M170EG01 V0 | AUO | 17.0 | 1280×1024 |
| M170EG01 V7 | AUO | 17.0 | 1280×1024 |
| M170EG01 V8 | AUO | 17.0 | 1280×1024 |
| M170EG01 V9 | AUO | 17.0 | 1280×1024 |
| M170EG01 VA | AUO | 17.0 | 1280×1024 |
| M170EG01 VD | AUO | 17.0 | 1280×1024 |
| M170EG01 VF | AUO | 17.0 | 1280×1024 |
| M170EP01 V0 | AUO | 17.0 | 1280×1024 |
| M170ETN01.0 | AUO | 17.0 | 1280×1024 |
| CLAA150XP03 | CPT | 15.0 | 1024×768 |
| HSD250MUW2-B00 | HannStar | 24.5 | 1920×1080 |
| LM201U04-A3K6 | LG Display | 20.1 | 1600×1200 |
| LM220WE1-TLP1 | LG Display | 22.0 | 1680×1050 |
| LTM150XS-T01 | Samsung | 15.0 | 1024×768 |
| LTM240CL01 | Samsung | 24.0 | 1920×1200 |
| M150XN07 V1 | AUO | 15.0 | 1024×768 |
| M185XW01 VH | AUO | 18.5 | 1366×768 |
| M215HGE-P02 | Innolux | 21.5 | 1920×1080 |
| NL10276AC30-07 | NLT | 15.0 | 1024×768 |
