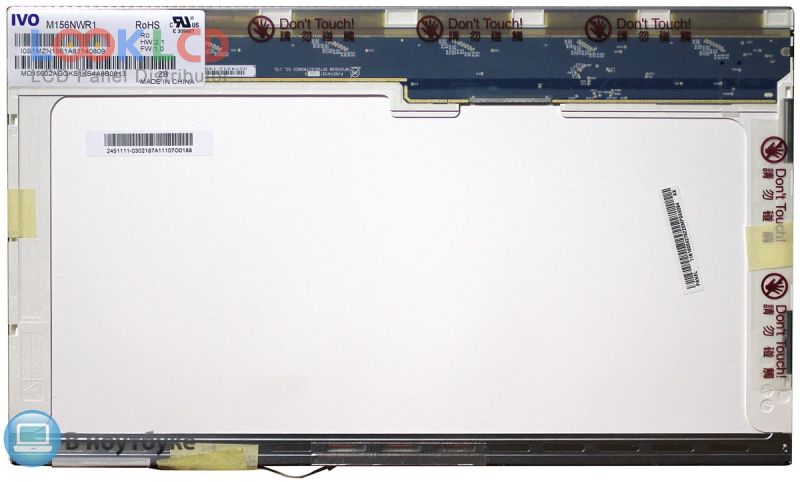

| Onderdeel nommer | M156NWR1 R0 |
| Handelsmerk | IVO |
| Grootte | 15.6 |
| Toepassing | NBPC |
| Resolusie | 1366×768 |
| Samestelling | LCM |
| Helderheid | 220 |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | IVO |
| paneel model | M156NWR1 R0 11 Compatible model |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 15.6 inch |
| resolusie | 1366(RGB)×768 , WXGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 344.232×193.536 mm |
| buitelyn | 359.3×209.5×6.2 mm |
| vorm styl | Wedge (PCBA Bent, Depth ≥5.2mm) |
| oppervlak | Glare (Haze 0%), Hard coating |
| helderheid | 220 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) |
| kleure vertoon | 262K (6-bit) |
| reaksie tyd | 8 (Typ.)(Tr+Td) |
| kykhoek | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 1 pcsCCFLWithout Driver |
| sein koppelvlak | LVDS (1 ch, 6-bit), 30 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
| B156XTN03.5 | AUO | 15.6 | 1366×768 |
| LP156WD1-TPB1 | LG Display | 15.6 | 1600×900 |
| LP156WF4-SPC1 | LG Display | 15.6 | 1920×1080 |
| LP156WH1-TLC2 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPG1 | LG Display | 15.6 | 1366×768 |
| LTN156AT05-H07 | Samsung | 15.6 | 1366×768 |
| LTN156AT11-A01 | Samsung | 15.6 | 1366×768 |
| M156NWR1 R0 | IVO | 15.6 | 1366×768 |
| N156BGE-L11 | Innolux | 15.6 | 1366×768 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| B154PW02 V1 | AUO | 15.4 | 1440×900 |
| B156XTN02.0 | AUO | 15.6 | 1366×768 |
| BT140GW02 V.9 | Innolux | 14.0 | 1366×768 |
| HT14P12-101 | HYDIS | 14.1 | 1400×1050 |
| LP156WF3-SLB1 | LG Display | 15.6 | 1920×1080 |
| LTN141BT06-002 | Samsung | 14.1 | 1440×900 |
| LTN160AT01-W01 | Samsung | 16.0 | 1366×768 |
| N121IB-L06 | Innolux | 12.1 | 1280×800 |
| N154I2-L01 | Innolux | 15.4 | 1280×800 |
| TX31D67VC1CAA | KOE | 12.1 | 1024×768 |
