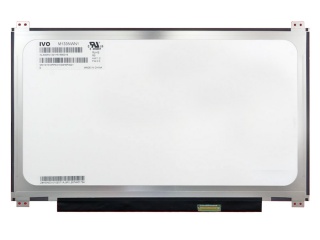

| Onderdeel nommer | M133NWN1 R5 |
| Handelsmerk | IVO |
| Grootte | 13.3 |
| Toepassing | Laptop |
| Resolusie | 1366×768 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| paneel handelsmerk | IVO |
| paneel model | M133NWN1 R5 (IVO0533) 9 Compatible |
| paneel grootte | 13.3" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1366(RGB)×768, WXGA, 118PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 293.42(W)×164.97(H) mm |
| ring opening | - |
| omtrek grootte | 306.3(W)×195.2(H) ×3(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 250 cd/m² (Typ.) |
| kontras verhouding | 500:1 (Typ.) (TM) |
| kykhoek | 45/45/20/40 (Typ.)(CR≥10) |
| vertoonmodus | TN, Normally White, Transmissive |
| beste uitsig op | 6 o'clock |
| reaksie tyd | 8 (Typ.)(Tr+Td) |
| kleure vertoon | 262K 54% NTSC |
| tipe lamp | WLED , 15K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| aansoek | Laptop |
| sein koppelvlak | eDP (1 Lane) , eDP1.2 , 30 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B133XTN01.6 HW1A | AUO | 13.3 | 1366×768 |
| LP133WQ1-SJA1 | LG Display | 13.3 | 2560×1600 |
| LP133WX1-TLB1 | LG Display | 13.3 | 1280×800 |
| LTN133AT01-001 | Samsung | 13.3 | 1280×800 |
| M133NWF2 R0 | IVO | 13.3 | 1920×1080 |
| M133NWN1 R0 | IVO | 13.3 | 1366×768 |
| M133NWN1 R1 | IVO | 13.3 | 1366×768 |
| M133NWN1 R3 | IVO | 13.3 | 1366×768 |
| N133BGE-EB1 | Innolux | 13.3 | 1366×768 |
| NV133FHM-N43 | BOE | 13.3 | 1920×1080 |
