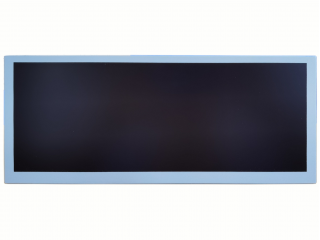

| Onderdeel nommer | M102AWF2 R2 |
| Handelsmerk | IVO |
| Grootte | 10.3 |
| Toepassing | Automotive Display |
| Resolusie | 1920×720 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | 8S3P |
| Koppelvlak | LVDS |
| paneel handelsmerk | IVO |
| paneel model | M102AWF2 R2 |
| paneel grootte | 10.3" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1920(RGB)×720, 200PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 243.65(W)×91.37(H) mm |
| ring opening | 245.65(W)×93.66(H) mm |
| omtrek grootte | 262.04(W)×110.3(H) ×16(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 800 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| vertoonmodus | IPS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 20 (Typ.)(Tr+Td) |
| kleure vertoon | 16.7M 75% NTSC |
| tipe lamp | 8S3P WLED , 10K hours , Without Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| paneel gewig | 380g (Max.) |
| aansoek | Automotive Display |
| sein koppelvlak | LVDS (2 ch, 8-bit) , 50 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
