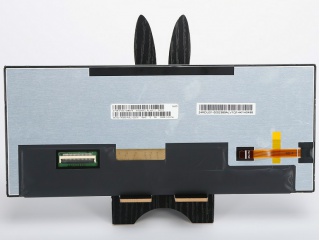

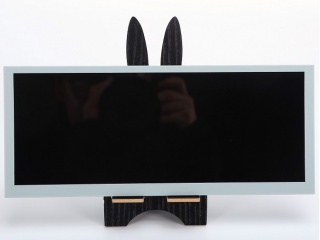

| Onderdeel nommer | M102AWF2 R1 |
| Handelsmerk | IVO |
| Grootte | 10.3 |
| Toepassing | Automotive Display |
| Resolusie | 1920×720 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| handelsmerk | IVO |
| model | M102AWF2 R1 |
| diagonale grootte | 10.3 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×720 200PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 243.65(H)×91.37(V) mm |
| buitelyn dof. | 262.04(H)×110.3(V) ×12.2(D) mm |
| ring area | 245.65(H)×93.66(V) mm |
| behandeling | Hard coating (3H) |
| helderheid | 800 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 20 (Typ.)(Tr+Td) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| bedryfsmodus | IPS, Normally Black, Transmissive |
| ondersteun kleur | 16.7M 72% NTSC |
| Ligbron | WLED [8S3P] , 10K hours , W/O Driver |
| gewig | 380g (Max.) |
| ontwerp vir | Automotive Display |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | LVDS (2 ch, 8-bit) , 50 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| DJ103FA-01A | Innolux | 10.3 | 1920×720 |
