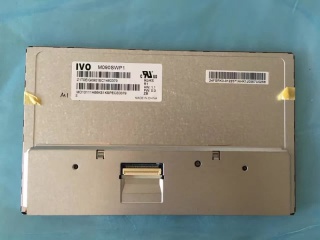

| Onderdeel nommer | M090SWP1 R1 |
| Handelsmerk | IVO |
| Grootte | 9.0 |
| Toepassing | Industrial |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | - |
| CR | 500:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| paneel handelsmerk | IVO |
| paneel grootte | 9.0" |
| resolusie | 800(RGB)×480, WVGA, 104PPI |
| vertoon area | 198(W)×111.696(H) mm |
| omtrek grootte | 211.1(W)×128.4(H) ×7.1(D) mm |
| helderheid | - |
| kykhoek | 70/70/50/70 (Typ.)(CR≥10) |
| beste uitsig op | 6 o'clock |
| kleure vertoon | 16.7M 50% NTSC |
| frekwensie | 60Hz |
| gewig | - |
| paneel model | M090SWP1 R1 |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | 201.0(W)×114.7(H) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| kontras verhouding | 500:1 (Typ.) (TM) |
| vertoonmodus | TN, Normally White, Transmissive |
| reaksie tyd | 10/15 (Typ.)(Tr/Td) |
| tipe lamp | WLED , 20K hours , With LED Driver |
| raakskerm | Without |
| aansoek | Industrial |
| AA090MC01 | Mitsubishi | 9.0 | 800×480 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| C090EAN01.1 | AUO | 9.0 | 1280×720 |
| DLC0900DIG-1 | Other | 9.0 | 800×480 |
| ED090NA-01H | Innolux | 9.0 | 1280×800 |
| LTA090A220F | TOSHIBA | 9.0 | 800×480 |
| LTA090B230F | TOSHIBA | 9.0 | 536×328 |
| LTA090B400F | TOSHIBA | 9.0 | 800×480 |
| M090SWP1 R0 | IVO | 9.0 | 800×480 |
| TX23D85VM0BAA | KOE | 9.0 | 1280×768 |
