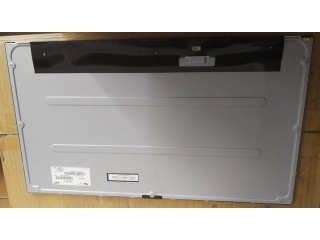

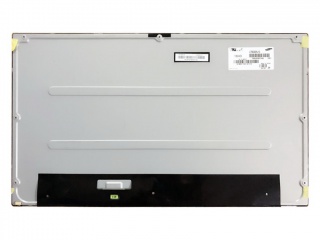

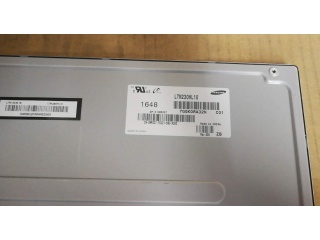

| Onderdeel nommer | LTM230HL10-C01 |
| Handelsmerk | SAMSUNG |
| Grootte | 23.0 |
| Toepassing | Desktop Monitor |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| paneel handelsmerk | SAMSUNG |
| paneel grootte | 23.0" |
| resolusie | 1920(RGB)×1080, FHD, 95PPI |
| vertoon area | 509.184(W)×286.416(H) mm |
| omtrek grootte | 522.38(W)×305.62(H) ×12.6(D) mm |
| helderheid | 250 cd/m² (Typ.) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 16.7M 72% NTSC |
| frekwensie | 60Hz |
| gewig | 2.38Kgs (Max.) |
| paneel model | LTM230HL10-C01 |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | 512.384(W)×289.616(H) mm |
| oppervlak | - |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| vertoonmodus | PLS, Normally Black, Transmissive |
| reaksie tyd | 14 (Typ.)(G to G) |
| tipe lamp | WLED , 40K hours , Without Driver |
| raakskerm | Without |
| aansoek | Desktop Monitor |
| LTM230HL08 | Samsung | 23.0 | 1920×1080 |
| LTM230HP07 | Samsung | 23.0 | 1920×1080 |
| LTM230HT01 | Samsung | 23.0 | 1920×1080 |
| LTM230HT02 | Samsung | 23.0 | 1920×1080 |
| LTM230HT03 | Samsung | 23.0 | 1920×1080 |
| LTM230HT05 | Samsung | 23.0 | 1920×1080 |
| LTM230HT09 | Samsung | 23.0 | 1920×1080 |
| LTM230HT10 | Samsung | 23.0 | 1920×1080 |
| LTM230HU01 | Samsung | 23.0 | 1920×1080 |
| T230XW01 V2 | AUO | 23.0 | 1366×768 |
