| Onderdeel nommer | LTF320HM01 |
| Handelsmerk | Samsung |
| Grootte | 31.5 |
| Toepassing | LCTV |
| Resolusie | 1920×1080 |
| Samestelling | LCM |
| Helderheid | 500 |
| CR | 4000:1 |
| Kleure | 16.7M |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | SAMSUNG |

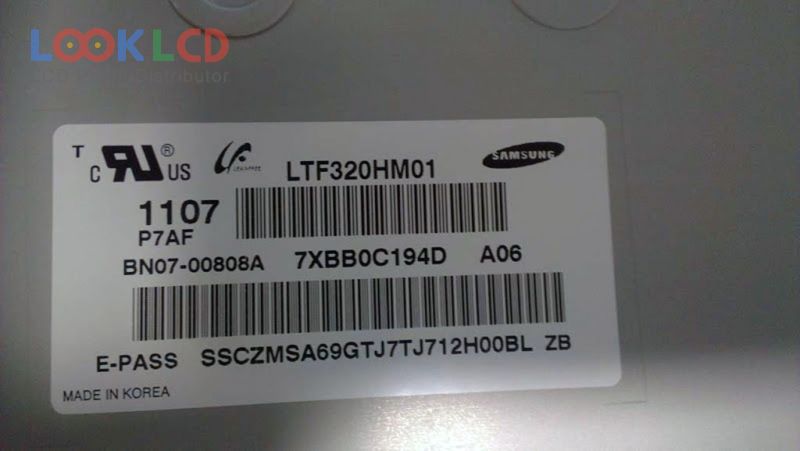

| paneel model | LTF320HM01 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 31.5 inch |
| resolusie | 1920(RGB)×1080 , FHD |
| vertoonmodus | S-PVA, Normally Black, Transmissive |
| aktiewe area | 698.4×392.85 mm |
| buitelyn | 760×450×50.2 mm |
| oppervlak | Antiglare (Haze 7%), Hard coating (3H) |
| helderheid | 500 cd/m² (Typ.) |
| kontras verhouding | 4000:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit), CIE193172% |
| reaksie tyd | 8 (Typ.)(G to G) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |

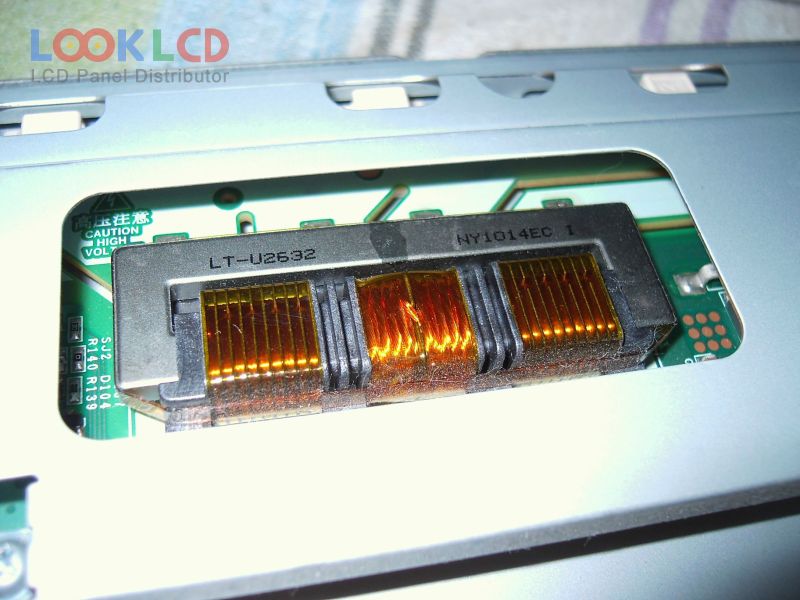

| tipe lamp | 4 pcsCCFLEmbedded (Inverter) |

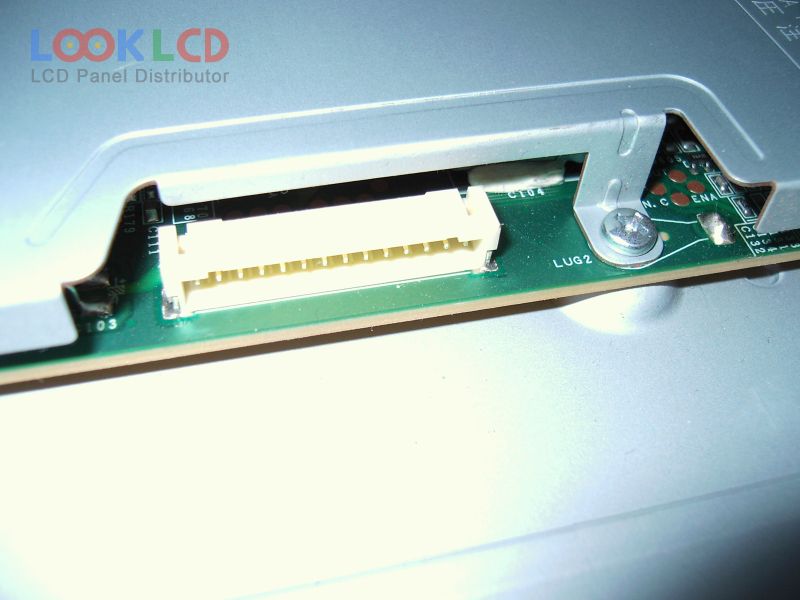

| sein koppelvlak | LVDS (2 ch, 8-bit), 51 pins |
| insetspanning | 12.0V (Typ.) |
| aansoek | LCTV |
