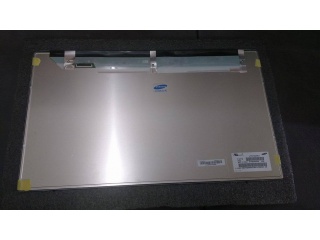

| Onderdeel nommer | LTF230AN01 |
| Handelsmerk | SAMSUNG |
| Grootte | 23.0 |
| Toepassing | TV Sets |
| Resolusie | 1366×768 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 4000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| handelsmerk | SAMSUNG |
| model | LTF230AN01 |
| diagonale grootte | 23.0 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1366(RGB)×768 [WXGA] 68PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 508.152(H)×285.696(V) mm |
| buitelyn dof. | - |
| helderheid | - |
| kontras verhouding | 4000:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 8 (Typ.)(G to G) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| bedryfsmodus | PVA, Normally Black, Transmissive |
| ondersteun kleur | 16.7M 68% NTSC |
| Ligbron | WLED |
| gewig | - |
| ontwerp vir | TV Sets |
| raamkoers | 60Hz |
| raakpaneel | Without |
| koppelvlak tipe | LVDS (1 ch, 8-bit) , 30 pins Connector |
| kragtoevoer | 12.0V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
