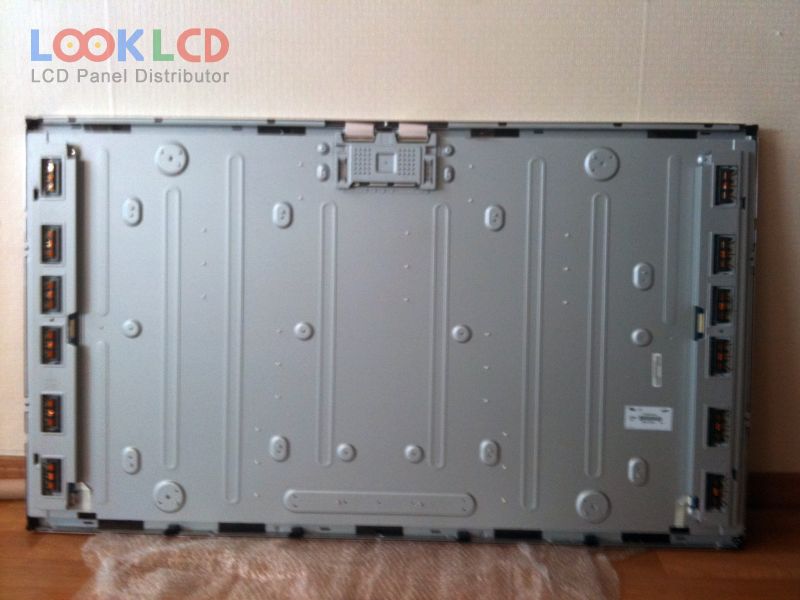

| Onderdeel nommer | LTA550HF02 |
| Handelsmerk | Samsung |
| Grootte | 55 |
| Toepassing | LCTV |
| Resolusie | 1920×1080 |
| Samestelling | LCM |
| Helderheid | 500 |
| CR | 5000:1 |
| Kleure | 16.7M |
| Agterlig | CCFL |
| Koppelvlak | LVDS |
| paneel handelsmerk | SAMSUNG |
| paneel model | LTA550HF02 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 55 inch |
| resolusie | 1920(RGB)×1080 , FHD |
| vertoonmodus | S-PVA, Normally Black, Transmissive |
| aktiewe area | 1209.6×680.4 mm |
| buitelyn | 1267.6×744.4 mm |
| oppervlak | Antiglare |
| helderheid | 500 cd/m² (Typ.) |
| kontras verhouding | 5000:1 (Typ.) |
| kleure vertoon | 16.7M (8-bit), CIE193172% |
| reaksie tyd | 10/6 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| kykhoek | 90/90/90/90 (Typ.)(CR≥10)(L/R/U/D) |
| frekwensie | 120Hz |
| tipe lamp | 22 pcsCCFLEmbedded (Inverter) |
| sein koppelvlak | LVDS (4 ch, 8-bit), 92 pins |
| insetspanning | 12.0V (Typ.) |
| aansoek | LCTV |
