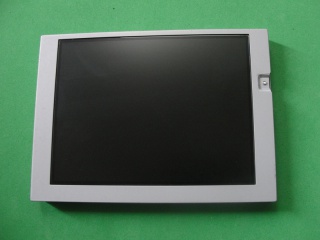

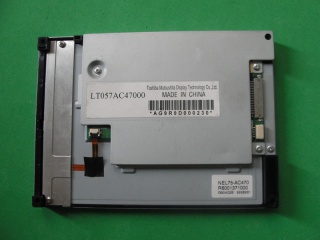

| Onderdeel nommer | LT057AC47000 |
| Handelsmerk | Toshiba Mobile Displ |
| Grootte | 5.7 |
| Toepassing | Industrial |
| Resolusie | 640×480 |
| Samestelling | LTPS TFT-LCD, LCM |
| Helderheid | |
| CR | 500:1 |
| Kleure | 262K/16.2M |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| handelsmerk | Toshiba Mobile Display |
| model | LT057AC47000 |
| diagonale grootte | 5.7 inch |
| tipe | LTPS TFT-LCD, LCM |
| pixel formaat | 640(RGB)×480 [VGA] 141PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 115.2(H)×86.4(V) mm |
| buitelyn dof. | - |
| helderheid | - |
| kontras verhouding | 500:1 (Typ.) (TM) |
| kyk rigting | 12 o'clock |
| reaksie tyd | 15/25 (Typ.)(Tr/Td) |
| kykhoek | 60/60/55/45 (Typ.)(CR≥10) |
| bedryfsmodus | TN, Normally White, Transmissive |
| ondersteun kleur | 262K/16.2M |
| Ligbron | WLED , 70K hours |
| gewig | - |
| ontwerp vir | Industrial |
| raamkoers | - |
| raakpaneel | Without |
| koppelvlak tipe | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| AA057VG02 | Mitsubishi | 5.7 | 640×480 |
| AA057VG12 | Mitsubishi | 5.7 | 640×480 |
| CLAA057VC01CT | CPT | 5.7 | 640×480 |
| EL320.240.36 ET | Lumineq | 5.7 | 320×240 |
| KCG057QV1DB-G77 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G02 | Kyocera | 5.7 | 320×240 |
| KS3224ASTT-FW-X9 | Kyocera | 5.7 | 320×240 |
| LM057QB1T073 | SHARP | 5.7 | 320×240 |
| LT057AA34B00 | TOSHIBA | 5.7 | 320×240 |
| TM320240EGFWVSWD | Tianma | 5.7 | 320×240 |
