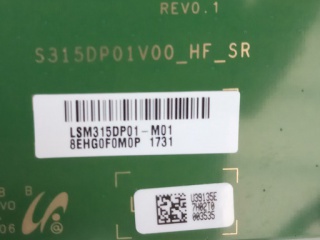

| Onderdeel nommer | LSM315DP01-M01 |
| Handelsmerk | SAMSUNG |
| Grootte | 32.0 |
| Toepassing | Desktop Monitor Gami |
| Resolusie | 2560×1440 |
| Samestelling | a-Si TFT-LCD , CELL |
| Helderheid | |
| CR | 3000:1 |
| Kleure | 16.7M |
| Agterlig | No |
| Koppelvlak | eDP |
| handelsmerk | SAMSUNG |
| diagonale grootte | 32.0 inch |
| pixel formaat | 2560(RGB)×1440 [Quad-HD] 93PPI |
| aktiewe area | 697.344(H)×392.256(V) mm |
| ring area | - |
| helderheid | 0 cd/m² |
| kyk rigting | Symmetry |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| plaat dikte | 0.40+0.40 mm |
| ondersteun kleur | 16.7M 70% NTSC |
| gewig | 900g (Typ.) |
| raamkoers | 144Hz |

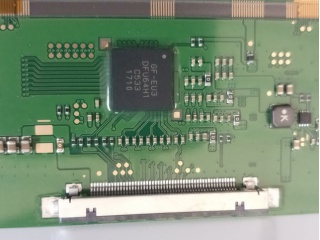

| d-ic detail | COF Built-in 8 source chips |
| koppelvlak tipe | eDP (4 Lanes) , HBR2 (5.4G/lane) , 51 pins Connector |
| kragtoevoer | 12.0V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | LSM315DP01-M01 |
| tipe | a-Si TFT-LCD , CELL |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 708.944(H)×405.731(V) ×1.11(D) mm |
| behandeling | Antiglare (Haze 25%) |
| kontras verhouding | 3000:1 (Typ.) (TM) |
| reaksie tyd | 22 (Typ.)(G to G) |
| bedryfsmodus | PVA, Normally Black, Transmissive |
| oordrag | 3.0% (Typ.)(with Polarizer) |
| Ligbron | No B/L |
| ontwerp vir | Desktop Monitor Gaming |
| raakpaneel | Without |
