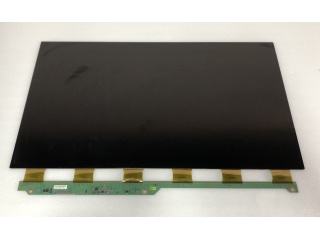

| Onderdeel nommer | LSM270HP05-G01 |
| Handelsmerk | SAMSUNG |
| Grootte | 27.0 |
| Toepassing | Desktop Monitor |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD, CELL |
| Helderheid | |
| CR | 3000:1 |
| Kleure | 16.7M |
| Agterlig | No |
| Koppelvlak | LVDS |
| paneel handelsmerk | SAMSUNG |
| paneel model | LSM270HP05-G01 |
| paneel grootte | 27.0" |
| paneel tipe | a-Si TFT-LCD, CELL |
| resolusie | 1920(RGB)×1080, FHD, 81PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 597.888(W)×336.312(H) mm |
| ring opening | - |
| omtrek grootte | 608.288(W)×348.037(H) ×1.16(D) mm |
| oppervlak | Antiglare (Haze 25%) |
| helderheid | 0 cd/m² |
| kontras verhouding | 3000:1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| vertoonmodus | SPVA, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 21 (Typ.)(G to G) |
| glas diepte | 0.40+0.40 mm |
| deurlaatbaarheid | 4.25% (Typ.)(with Polarizer) |
| kleure vertoon | 16.7M 70% NTSC |
| tipe lamp | No B/L |
| frekwensie | 60Hz |
| raakskerm | Without |
| bestuurder ic | COFBuilt-in 6 source chips |
| paneel gewig | 560g (Typ.) |
| aansoek | Desktop Monitor |
| sein koppelvlak | LVDS (2 ch, 8-bit) , 30 pins Connector |
| insetspanning | 12.0V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
