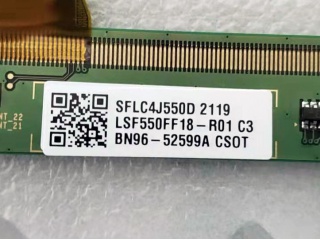

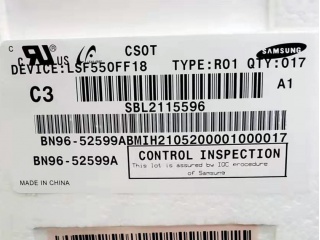

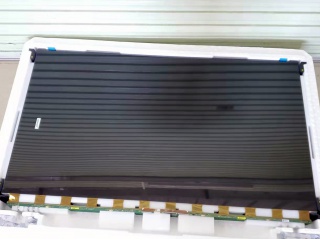

| Onderdeel nommer | LSF550FF18 |
| Handelsmerk | SAMSUNG SDI |
| Grootte | 55 |
| Toepassing | TV Sets |
| Resolusie | 3840×2160 |
| Samestelling | CELL, a-Si TFT-LCD |
| Helderheid | |
| CR | 6000:1 |
| Kleure | 16.7M |
| Agterlig | No |
| Koppelvlak | |
| vervaardiger | SAMSUNG SDI |
| model naam | LSF550FF18 |
| skerm grootte | 55 inch |
| tipe skerm | CELL, a-Si TFT-LCD |
| pixel nommer | 3840(RGB)×2160 (UHD) 80PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 1209.6 × 680.4 (H×V) |
| buitelyn (mm) | 1219.6 × 691.85 × 1.3 (H×V×D) |
| ring area (mm) | - |
| behandeling | Antiglare (Haze 2.3%), Hard coating (2H) |
| helderheid | 0 cd/m² |
| kontras verhouding | 6000 : 1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| reaksie | 6 (Typ.)(G to G) ms |
| goeie uitsig by | Symmetry |
| werksmodus | SVA, Normally Black, Transmissive |
| glas dikte | 0.40+0.50 mm |
| deurlaatbaarheid | 5.3% (Typ.) |
| kleurdiepte | 16.7M 100% sRGB |
| agterlig | No B/L |
| massa | 2.30 Kgs |
| gebruik vir | TV Sets |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| bestuurder ic lys | Built-in COG 12 source chips |
| maks. graderings | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 50 °C |
| LC550DUY-SHA1 | LG Display | 55 | 1920×1080 |
| LC550EGG-FHM1 | LG Display | 55 | 3840×2160 |
| LC550EUD-SCA1 | LG Display | 55 | 1920×1080 |
| LSC550FN06 | Samsung | 55 | 3840×2160 |
| LTF550HJ03 | Samsung | 55 | 1920×1080 |
| LTI550HN11 | Samsung | 55 | 1920×1080 |
| LTI550HN14 | Samsung | 55 | 1920×1080 |
| P546HW01 V0 | AUO | 55 | 1920×1080 |
| T546HB01 V0 | AUO | 55 | 1920×1080 |
| T550HVN02.1 | AUO | 55 | 1920×1080 |
