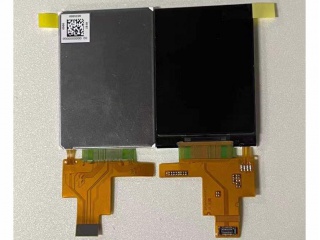

| Onderdeel nommer | LS019B3SX01 |
| Handelsmerk | Sharp |
| Grootte | 1.9 |
| Toepassing | Handheld & PDA |
| Resolusie | 240×320 |
| Samestelling | LTPS TFT-LCD, LCM |
| Helderheid | |
| CR | 2000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | MIPI |
| paneel handelsmerk | Sharp |
| paneel model | LS019B3SX01 |
| paneel grootte | 1.9" |
| paneel tipe | LTPS TFT-LCD, LCM |
| resolusie | 240(RGB)×320, QVGA, 210PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 29.172(W)×38.4285(H) mm |
| ring opening | 30.172(W)×40.025(H) mm |
| omtrek grootte | 33.57(W)×48.13(H) ×2.95(D) mm |
| oppervlak | - |
| helderheid | 650 cd/m² (Typ.) |
| kontras verhouding | 2000:1 (Typ.) (TM) |
| kykhoek | 80/80/80/80 (Min.)(CR≥10) |
| vertoonmodus | New Mode2, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 20 (Typ.)(Tr/Td) |
| kleure vertoon | 16.7M 50% NTSC |
| tipe lamp | WLED , Without Driver |
| frekwensie | - |
| raakskerm | Without |
| paneel gewig | 10.5g (Typ.) |
| aansoek | Handheld & PDA |
| sein koppelvlak | MIPI (1 data lane) , 16 pins Connector |
| insetspanning | 1.8/3.3V (Typ.)(VDDI/VCI) |
| omgewing | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
