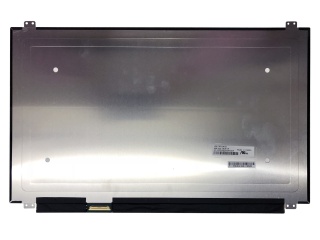

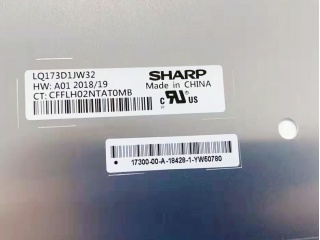

| Onderdeel nommer | LQ173D1JW32 |
| Handelsmerk | Sharp |
| Grootte | 17.3 |
| Toepassing | Laptop |
| Resolusie | 3840×2160 |
| Samestelling | Oxide TFT-LCD, LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| paneel handelsmerk | Sharp |
| paneel model | LQ173D1JW32 |
| paneel grootte | 17.3" |
| paneel tipe | Oxide TFT-LCD, LCM |
| resolusie | 3840(RGB)×2160, UHD, 255PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 382.12(W)×214.94(H) mm |
| ring opening | - |
| omtrek grootte | 393.69(W)×252(H) ×4(D) mm |
| oppervlak | Antiglare, Hard coating (3H) |
| helderheid | 300 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| kykhoek | 88/88/88/88 (Typ.)(CR≥10) |
| vertoonmodus | IPS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 30 (Typ.)(Tr+Td) |
| kleure vertoon | 16.7M 100% Adobe RGB |
| tipe lamp | WLED , 12K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| vorm styl | Flat (PCBA Flat, T3.4~4.0mm) |
| aansoek | Laptop |
| sein koppelvlak | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
