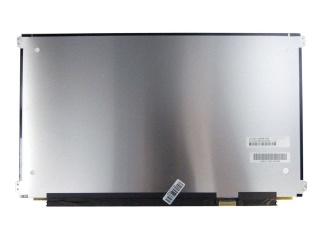

| Onderdeel nommer | LQ156Z1JW03B |
| Handelsmerk | Sharp |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 3200×1800 |
| Samestelling | LCM , Oxide TFT-LC |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| vervaardiger | Sharp |
| skerm grootte | 15.6 inch |
| pixel nommer | 3200(RGB)×1800 (Quad-HD+) 235PPI |
| aktiewe area (mm) | 345.6 × 194.4 (H×V) |
| ring area (mm) | - |
| helderheid | 300 cd/m² (Typ.) |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10) |
| goeie uitsig by | Symmetry |
| kleurdiepte | 16.7M 100% sRGB |
| omtrek vorm | Slim (PCBA Flat, T≤3.2mm) |
| herlaaitempo | 60Hz |
| sein tipe | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model naam | LQ156Z1JW03B (SHP141C) |
| tipe skerm | LCM , Oxide TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 367.98 × 218.21 × 2.85 (H×V×D) |
| behandeling | Antiglare, Hard coating (3H) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| reaksie | 25 (Typ.)(Tr+Td) ms |
| werksmodus | New Mode, Normally Black, Transmissive |
| agterlig | WLED , With LED Driver |
| gebruik vir | Laptop |
| raakskerm | Without |
