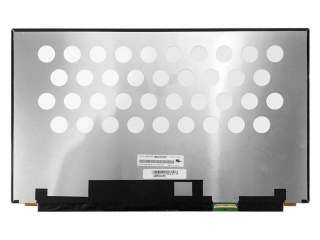

| Onderdeel nommer | LQ156D1JX36x |
| Handelsmerk | Sharp |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 3840×2160 |
| Samestelling | Oxide TFT-LCD , LCM |
| Helderheid | |
| CR | 1500:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | Sharp |
| diagonale grootte | 15.6 inch |
| pixel formaat | 3840(RGB)×2160 [UHD] 282PPI |
| aktiewe area | 345.6(H)×194.4(V) mm |
| ring area | - |
| helderheid | 300 cd/m² (Typ.) |
| kyk rigting | Symmetry |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| ondersteun kleur | 16.7M 100% sRGB |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| raamkoers | 60Hz |
| koppelvlak tipe | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| model | LQ156D1JX36x (SHP1480) |
| tipe | Oxide TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 351.9(H)×217.2(V) ×2.75(D) mm |
| behandeling | Glare (Haze 0%), Hard coating (3H) |
| kontras verhouding | 1500:1 (Typ.) (TM) |
| reaksie tyd | 33 (Typ.)(Tr+Td) |
| bedryfsmodus | IPS, Normally Black, Transmissive |
| Ligbron | WLED , 15K hours , With LED Driver |
| ontwerp vir | Laptop |
| raakpaneel | Without |
