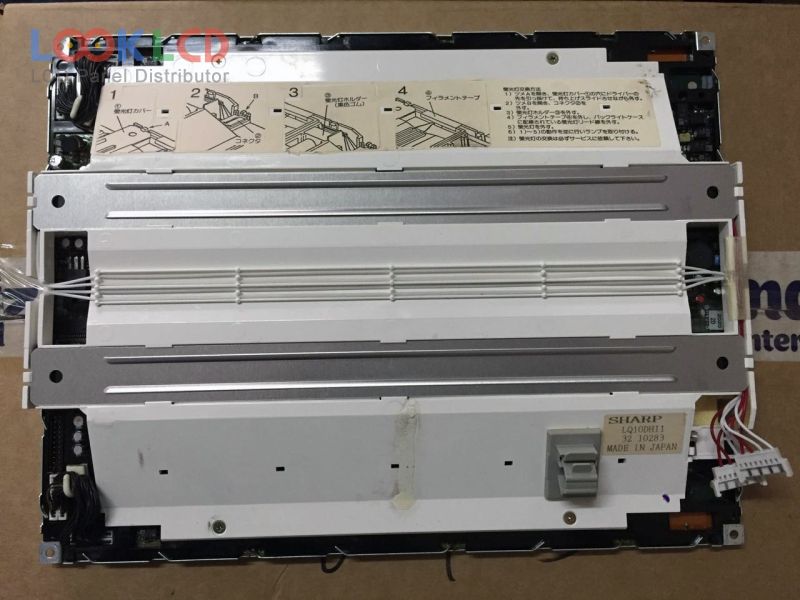

| Onderdeel nommer | LQ10DH11 |
| Handelsmerk | SHARP |
| Grootte | 10.4 |
| Toepassing | IA |
| Resolusie | 640×480 |
| Samestelling | LCM |
| Helderheid | 80 |
| CR | 60:1 |
| Kleure | 512 |
| Agterlig | HCFL |
| Koppelvlak | TTL |
| paneel handelsmerk | SHARP |
| paneel model | LQ10DH11 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 10.4 inch |
| resolusie | 640(RGB)×480 , VGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 211.2×158.4 mm |
| buitelyn | 283×217 mm |
| oppervlak | Antiglare, Hard coating (2H) |
| helderheid | 80 cd/m² (Typ.) |
| kontras verhouding | 60:1 (Min.) |
| kleure vertoon | 512 (3-bit) |
| reaksie tyd | 30/50 (Typ.)(Tr/Td) |
| kykhoek | 45/45/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| tipe lamp | 2 pcsHCFLWithout Driver |
| sein koppelvlak | Parallel RGB (1 ch, 3-bit), 22 pins |
| insetspanning | 5.0/12.0V (Typ.)(VCC/VDD) |
| aansoek | IA |
| LQ101K5DZ01 | SHARP | 10.1 | 1280×422 |
| LQ104S1DG31 | SHARP | 10.4 | 800×600 |
| LQ104V1DG21 | SHARP | 10.4 | 640×480 |
| LQ104V1DG59 | SHARP | 10.4 | 640×480 |
| LQ104V1DG5B | SHARP | 10.4 | 640×480 |
| LQ104V1DG72 | SHARP | 10.4 | 640×480 |
| LQ106K1LA01C | SHARP | 10.6 | 1280×768 |
| LQ10DH11 | SHARP | 10.4 | 640×480 |
| LQ10PX01 | SHARP | 10.4 | 1024×768 |
| LQ10W03 | SHARP | 10.4 | 1024×600 |
| AM-1024600L7TMQW-T05H | AMPIRE | 10.1 | 1024×600 |
| DMF-50174ZNB-FW | Kyocera | 5.7 | 320×240 |
| LM-CE53-22NEK | SANYO | 9.4 | 640×480 |
| LM64C12P | SHARP | 9.4 | 640×480 |
| LM64P723 | SHARP | 9.4 | 640×480 |
| LQ150X1LG91 | SHARP | 15.0 | 1024×768 |
| M150MNN1 R1 | IVO | 15.0 | 1024×768 |
| NL10276AC20-03 | NLT | 10.4 | 1024×768 |
| PD064VXA | E Ink | 6.4 | 640×480 |
| TM101DDHG03 | Tianma | 10.1 | 1024×600 |
