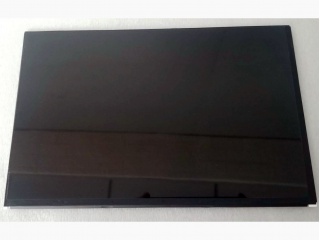

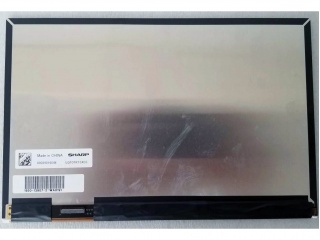

| Onderdeel nommer | LQ101R1JX03 |
| Handelsmerk | Sharp |
| Grootte | 10.1 |
| Toepassing | Pad & Tablet |
| Resolusie | 2560×1600 |
| Samestelling | Oxide TFT-LCD, LCM |
| Helderheid | |
| CR | 900:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | Sharp |
| model | LQ101R1JX03 |
| diagonale grootte | 10.1 inch |
| tipe | Oxide TFT-LCD, LCM |
| pixel formaat | 2560(RGB)×1600 [WQXGA] 299PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 216.96(H)×135.6(V) mm |
| buitelyn dof. | - |
| helderheid | - |
| kontras verhouding | 900:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kykhoek | 80/80/80/80 (Min.)(CR≥10) |
| bedryfsmodus | IPS, Normally Black, Transmissive |
| ondersteun kleur | 16.7M 51% NTSC |
| Ligbron | WLED |
| gewig | - |
| ontwerp vir | Pad & Tablet |
| raamkoers | 60Hz |
| raakpaneel | - |
| koppelvlak tipe | eDP |
| omgewing | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| B101XAN02.0 | AUO | 10.1 | 1366×768 |
| BA101WS1-100 | BOE | 10.1 | 1024×600 |
| HJ101IA-01I | Innolux | 10.1 | 1280×800 |
| HSD101PFW3-B00 | HannStar | 10.1 | 1024×600 |
| HV101HD1-1E2 | HYDIS | 10.1 | 1366×768 |
| LQ101K1LY02 | SHARP | 10.1 | 1280×800 |
| LQ101K5DZ01 | SHARP | 10.1 | 1280×422 |
| LQ101R1SX01A | SHARP | 10.1 | 2560×1600 |
| LQ101R1SX03 | SHARP | 10.1 | 2560×1600 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
