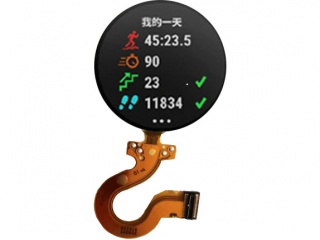

| Onderdeel nommer | LPM013M461B |
| Handelsmerk | JDI |
| Grootte | 1.29 |
| Toepassing | Wearable |
| Resolusie | 260×260 |
| Samestelling | LCM , LTPS TFT-LCD |
| Helderheid | |
| CR | 20:1 |
| Kleure | 64 |
| Agterlig | No |
| Koppelvlak | |
| vervaardiger | JDI |
| model naam | LPM013M461B |
| skerm grootte | 1.29 inch |
| tipe skerm | LCM , LTPS TFT-LCD |
| pixel nommer | 260(RGB)×260 201PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 32.76 × 32.76 (H×V) |
| buitelyn (mm) | 35.56 × 36.26 × 1.01 (H×V×D) |
| ring area (mm) | - |
| behandeling | Hard coating (2H) |
| helderheid | - |
| kontras verhouding | 20:1 (Typ.) (RF) |
| kykhoek | 60/65/65/60 (Typ.)(CR≥2) |
| reaksie | 3/6 (Typ.)(Tr/Td) ms |
| goeie uitsig by | - |
| werksmodus | ECB, Normally Black, Reflective |
| kleurdiepte | 64 23% NTSC |
| agterlig | No B/L |
| massa | 1.90g (Typ.) |
| gebruik vir | Wearable |
| herlaaitempo | 30Hz |
| raakskerm | Without |
| spanningstoevoer | 3.2/4.5V (Typ.)(VDD1/VDD2) |
| maks. graderings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| LPM010R030B | JDI | 0.99 | 180×180 |
| LPM012A154A | JDI | 1.2 | 218×218 |
| LPM013M091A | JDI | 1.34 | 320×300 |
