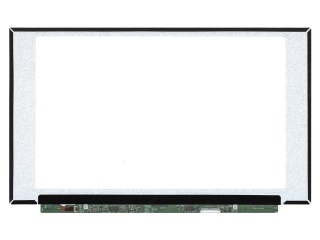

| Onderdeel nommer | LP156WF9-SPL2 |
| Handelsmerk | LG Display |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 700:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | LG Display |
| model | LP156WF9-SPL2 |
| diagonale grootte | 15.6 inch |
| tipe | a-Si TFT-LCD, LCM |
| pixel formaat | 1920(RGB)×1080 [FHD] 141PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 344.16(H)×193.59(V) mm |
| buitelyn dof. | - |
| helderheid | - |
| kontras verhouding | 700:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 25 (Typ.)(Tr+Td) |
| kykhoek | 80/80/80/80 (Min.)(CR≥10) |
| bedryfsmodus | IPS, Normally Black, Transmissive |
| ondersteun kleur | 262K |
| Ligbron | WLED |
| vorm styl | - |
| ontwerp vir | Laptop |
| raamkoers | 60Hz |
| raakpaneel | - |
| koppelvlak tipe | eDP (2 Lanes) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
