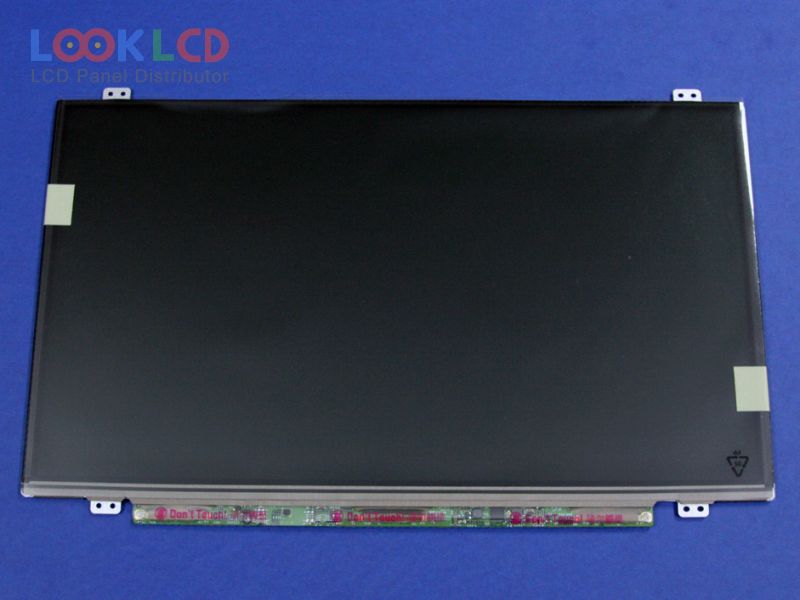

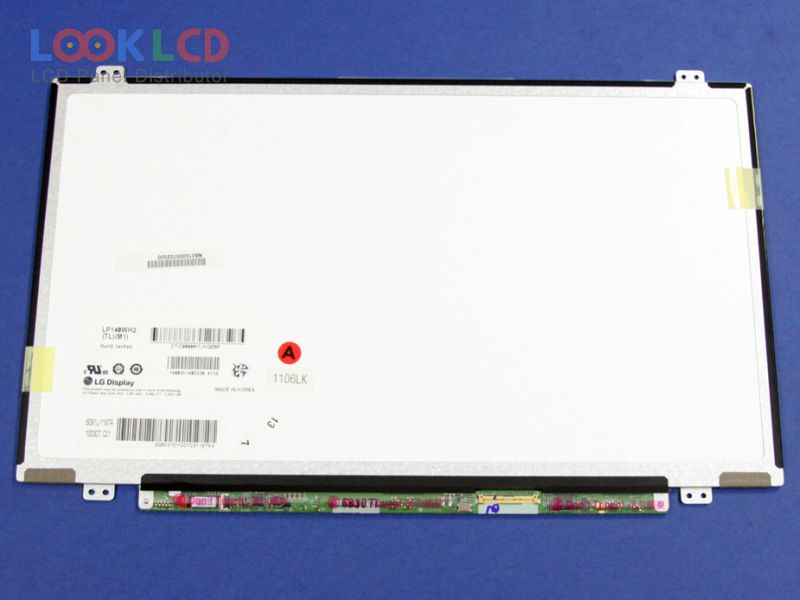

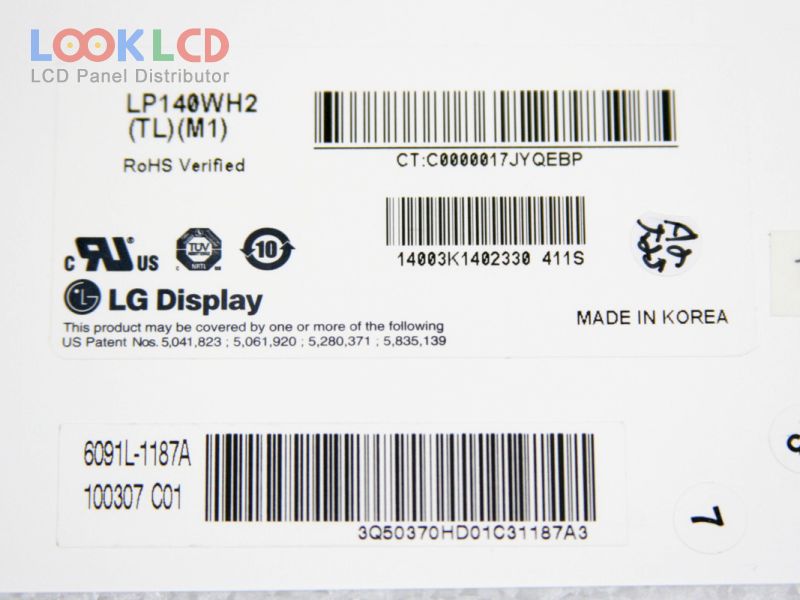

| Onderdeel nommer | LP140WH2-TLM1 |
| Handelsmerk | LG Display |
| Grootte | 14.0 |
| Toepassing | NBPC |
| Resolusie | 1366×768 |
| Samestelling | LCM |
| Helderheid | 200 |
| CR | 350:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | LG Display |
| paneel model | LP140WH2-TLM1 2 Compatible model |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 14.0 inch |
| resolusie | 1366(RGB)×768 , WXGA |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 309.399×173.952 mm |
| buitelyn | 322.3×204.6×3.6 mm |
| vorm styl | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| oppervlak | Antiglare, Hard coating (2H) |
| helderheid | 200 cd/m² (Typ.) |
| kontras verhouding | 350:1 (Typ.) |
| kleure vertoon | 262K (6-bit), CIE193145% |
| reaksie tyd | 16 (Typ.)(Tr+Td) |
| kykhoek | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekwensie | 60Hz |
| tipe lamp | 8S4PWLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (1 ch, 6-bit), 40 pins |
| insetspanning | 3.3V (Typ.) |
| aansoek | NBPC |
| LP140WF5-SPB3 | LG Display | 14.0 | 1920×1080 |
| LP140WH1-TLC1 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TLC6 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLE2 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLF3 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLS1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLA1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLN1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLP1 | LG Display | 14.0 | 1366×768 |
| LP140WH8-TLA1 | LG Display | 14.0 | 1366×768 |
| B101XTN01.1 | AUO | 10.1 | 1366×768 |
| B116XTK01.1 | AUO | 11.6 | 1366×768 |
| B154PW02 V1 | AUO | 15.4 | 1440×900 |
| HT14P12-101 | HYDIS | 14.1 | 1400×1050 |
| LP133WP1-TJA7 | LG Display | 13.3 | 1440×900 |
| LTD133EWCF | TOSHIBA | 13.3 | 1280×800 |
| LTN154U2-L03 | Samsung | 15.4 | 1920×1200 |
| N140HGE-EAA | Innolux | 14.0 | 1920×1080 |
| N156BGE-EA1 | Innolux | 15.6 | 1366×768 |
| NV133FHM-N52 | BOE | 13.3 | 1920×1080 |
