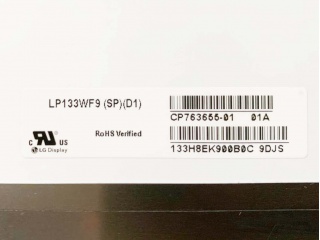

| Onderdeel nommer | LP133WF9-SPD1 |
| Handelsmerk | LG Display |
| Grootte | 13.3 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1500:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| vervaardiger | LG Display |
| model naam | LP133WF9-SPD1 (LGD0605) |
| skerm grootte | 13.3 inch |
| tipe skerm | LCM , a-Si TFT-LCD |
| pixel nommer | 1920(RGB)×1080 (FHD) 166PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 293.76 × 165.24 (H×V) |
| buitelyn (mm) | 297.66 × 186.49 × 2.25 (H×V×D) |
| ring area (mm) | - |
| behandeling | Antiglare, Hard coating (3H) |
| helderheid | 400 cd/m² (Typ.) |
| kontras verhouding | 1500 : 1 (Typ.) (TM) |
| kykhoek | 85/85/85/85 (Typ.)(CR≥10) |
| reaksie | 30 (Typ.)(Tr+Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | IPS, Normally Black, Transmissive |
| kleurdiepte | 16.7M 74% NTSC |
| agterlig | WLED , 12K hours , With LED Driver |
| omtrek vorm | Slim (PCBA Flat, T≤3.2mm) |
| gebruik vir | Laptop |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | eDP (2 Lanes) , eDP1.4 , HBR1 (2.7G/lane) , 30 pins Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
