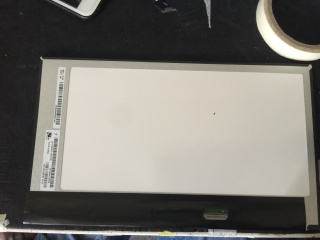

| Onderdeel nommer | LP116WH7-SPC2 |
| Handelsmerk | LG Display |
| Grootte | 11.6 |
| Toepassing | Laptop |
| Resolusie | 1366×768 |
| Samestelling | a-Si TFT-LCD, LCM |
| Helderheid | |
| CR | 600:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| paneel handelsmerk | LG Display |
| paneel model | LP116WH7-SPC2 (LGD04DC) |
| paneel grootte | 11.6" |
| paneel tipe | a-Si TFT-LCD, LCM |
| resolusie | 1366(RGB)×768, WXGA, 135PPI |
| pixel formaat | RGB Vertical Stripe |
| vertoon area | 256.125(W)×144(H) mm |
| ring opening | 259.25(W)×147.8(H) mm |
| omtrek grootte | 268.35(W)×157.35(H) ×4.8(D) mm |
| oppervlak | Glare (Haze 0%), Hard coating (3H) |
| helderheid | 220 cd/m² (Typ.) |
| kontras verhouding | 600:1 (Typ.) (TM) |
| kykhoek | 80/80/80/80 (Min.)(CR≥10) |
| vertoonmodus | IPS, Normally Black, Transmissive |
| beste uitsig op | Symmetry |
| reaksie tyd | 35 (Typ.)(Tr+Td) |
| kleure vertoon | 262K 49% NTSC |
| tipe lamp | WLED , 15K hours , With LED Driver |
| frekwensie | 60Hz |
| raakskerm | Without |
| vorm styl | Slim (PCBA Bent, T≤3.0mm) |
| aansoek | Laptop |
| sein koppelvlak | eDP (2 Lanes) , HBR1 (2.7G/lane) , 30 pins Connector |
| insetspanning | 3.3V (Typ.) |
| omgewing | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
