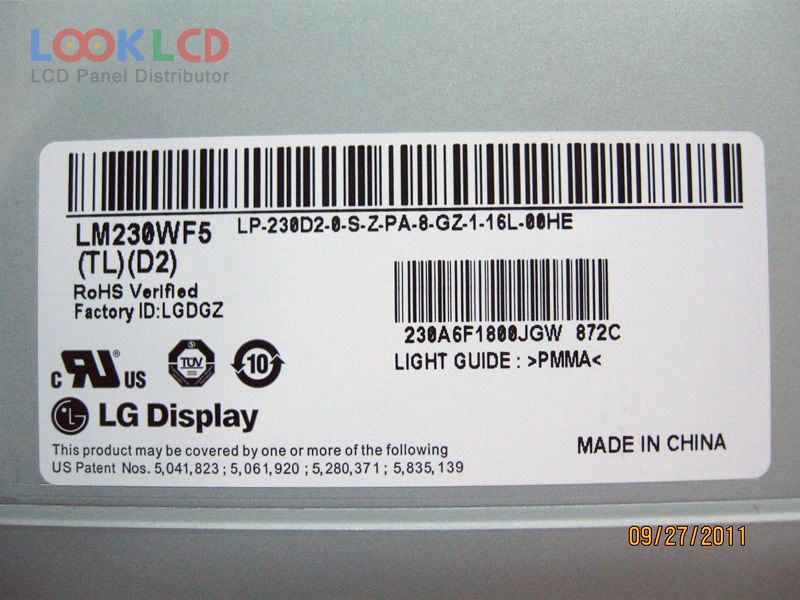

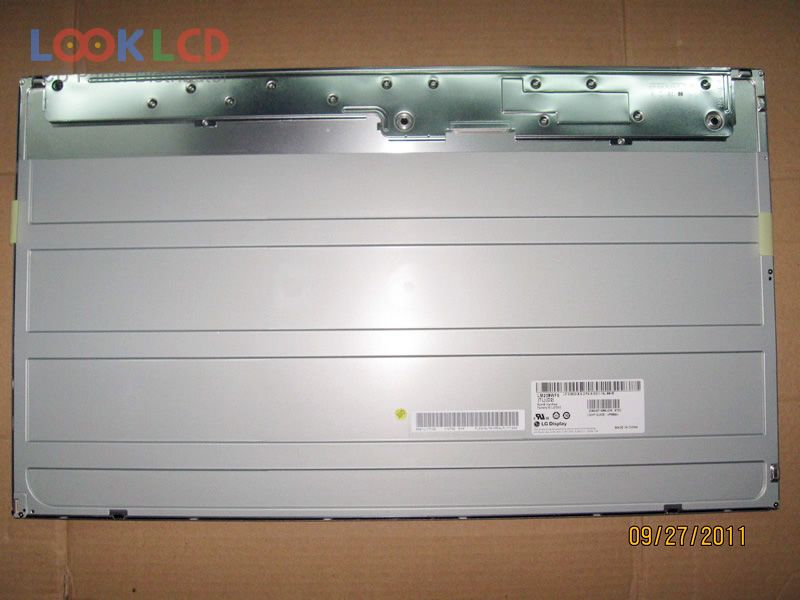

| Onderdeel nommer | LM230WF5-TLD2 |
| Handelsmerk | LG Display |
| Grootte | 23.0 |
| Toepassing | DMPC |
| Resolusie | 1920×1080 |
| Samestelling | LCM |
| Helderheid | 250 |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | |
| paneel handelsmerk | LG Display |
| paneel model | LM230WF5-TLD2 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 23.0 inch |
| resolusie | 1920(RGB)×1080 , FHD |
| vertoonmodus | TN, Normally White, Transmissive |
| aktiewe area | 509.184×286.416 mm |
| oppervlak | |
| helderheid | 250 cd/m² (Typ.) |
| kontras verhouding | 1000:1 (Typ.) |
| kleure vertoon | 16.7M (6-bit + Hi-FRC) |
| reaksie tyd | |
| kykhoek | |
| tipe lamp | WLED |
| aansoek | DMPC |
| LM230WF1-TLA3 | LG Display | 23.0 | 1920×1080 |
| LM230WF1-TLA5 | LG Display | 23.0 | 1920×1080 |
| LM230WF3-SLB2 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLA3 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLD1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLD2 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLF1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLH1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TRC2 | LG Display | 23.0 | 1920×1080 |
| LM230WU3-STC3 | LG Display | 23.0 | 1920×1200 |
| CLAA150XP01Q V2 | CPT | 15.0 | 1024×768 |
| LM190E09-TLD1 | LG Display | 19.0 | 1280×1024 |
| LM215WF4-TLA3 | LG Display | 21.5 | 1920×1080 |
| LM260WU2-SLA1 | LG Display | 25.5 | 1920×1200 |
| LTM200KT10 | Samsung | 20.0 | 1600×900 |
| LTM230HT10 | Samsung | 23.0 | 1920×1080 |
| LTM240CL04 | Samsung | 24.0 | 1920×1200 |
| M185BGE-L10 | Innolux | 18.5 | 1366×768 |
| M200RW01 V3 | AUO | 20.0 | 1600×900 |
| M240UP01 V0 | AUO | 24.0 | 1920×1200 |
