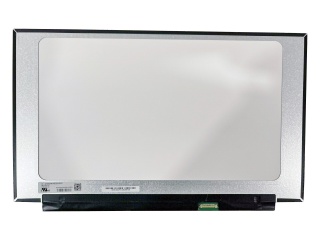

| Onderdeel nommer | LM156LFAL02 |
| Handelsmerk | PANDA |
| Grootte | 15.6 |
| Toepassing | Laptop |
| Resolusie | 1920×1080 |
| Samestelling | LCM , Oxide TFT-LC |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 262K |
| Agterlig | WLED |
| Koppelvlak | eDP |
| vervaardiger | PANDA |
| skerm grootte | 15.6 inch |
| pixel nommer | 1920(RGB)×1080 (FHD) 141PPI |
| aktiewe area (mm) | 344.16 × 193.59 (H×V) |
| helderheid | 250 cd/m² (Typ.) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| goeie uitsig by | Symmetry |
| kleurdiepte | 262K |
| omtrek vorm | - |
| herlaaitempo | 60Hz |
| sein tipe | eDP (2 Lanes) , eDP1.2 Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model naam | LM156LFAL02 |
| tipe skerm | LCM , Oxide TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | - |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| reaksie | 25 (Typ.)(Tr+Tf) ms |
| werksmodus | FFS, Normally Black, Transmissive |
| agterlig | WLED |
| gebruik vir | Laptop |
| raakskerm | Without |
