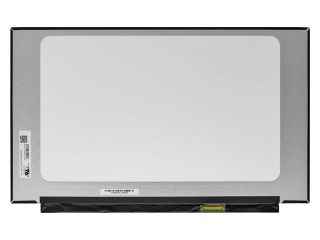

| Onderdeel nommer | LM156LF1F02 |
| Handelsmerk | PANDA |
| Grootte | 15.6 |
| Toepassing | Laptop Gaming |
| Resolusie | 1920×1080 |
| Samestelling | Oxide TFT-LCD , LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| handelsmerk | PANDA |
| diagonale grootte | 15.6 inch |
| pixel formaat | 1920(RGB)×1080 [FHD] 141PPI |
| aktiewe area | 344.16(H)×193.59(V) mm |
| ring area | - |
| helderheid | 300 cd/m² (Typ.) |
| kyk rigting | Symmetry |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| ondersteun kleur | 16.7M 72% NTSC |
| vorm styl | Slim (PCBA Flat, T≤3.2mm) |
| raamkoers | 144Hz |
| koppelvlak tipe | eDP (2 Lanes) , eDP1.4 , 40 pins Connector |
| kragtoevoer | 3.3V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | LM156LF1F02 (NCP004B) |
| tipe | Oxide TFT-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | 350.66(H)×216.245(V) ×2.6(D) mm |
| behandeling | Antiglare, Hard coating (3H) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| reaksie tyd | 9/4 (Typ.)(Tr/Td) |
| bedryfsmodus | FFS, Normally Black, Transmissive |
| Ligbron | WLED , 15K hours , With LED Driver |
| ontwerp vir | Laptop Gaming |
| raakpaneel | Without |
