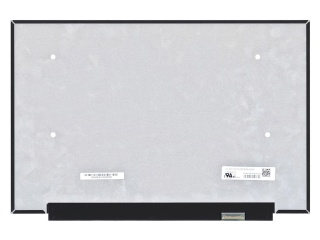

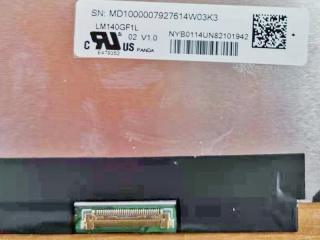

| Onderdeel nommer | LM140GF1L02 |
| Handelsmerk | PANDA |
| Grootte | 14.0 |
| Toepassing | Laptop |
| Resolusie | 2560×1600 |
| Samestelling | LCM , Oxide TFT-LC |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | WLED |
| Koppelvlak | eDP |
| vervaardiger | PANDA |
| skerm grootte | 14.0 inch |
| pixel nommer | 2560(RGB)×1600 (WQXGA) 215PPI |
| aktiewe area (mm) | 301.824 × 188.64 (H×V) |
| ring area (mm) | - |
| helderheid | 300 cd/m² (Typ.) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| goeie uitsig by | Symmetry |
| kleurdiepte | 16.7M 71% NTSC |
| omtrek vorm | Slim (PCBA Flat, T≤3.2mm) |
| herlaaitempo | 60Hz |
| sein tipe | eDP (2 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 30 pins Connector |
| spanningstoevoer | 3.3V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model naam | LM140GF1L02 (NCP006A) 1 Compatible |
| tipe skerm | LCM , Oxide TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 306.824 × 205.84 × 2.4 (H×V×D) |
| behandeling | Antiglare (Haze 25%) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| reaksie | 25 (Typ.)(Tr+Td) ms |
| werksmodus | FFS, Normally Black, Transmissive |
| agterlig | WLED , 15K hours , With LED Driver |
| gebruik vir | Laptop |
| raakskerm | Without |
| B140XTN03.2 | AUO | 14.0 | 1366×768 |
| B140XTN03.5 | AUO | 14.0 | 1366×768 |
| BT140GW01 V.A | Innolux | 14.0 | 1366×768 |
| CLAA140WB01A | CPT | 14.0 | 1366×768 |
| HB140WX1-500 | BOE | 14.0 | 1366×768 |
| HSD140PNW1-B00 | HannStar | 14.0 | 1600×900 |
| LP140WH1-TLC3 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TPS1 | LG Display | 14.0 | 1366×768 |
| LP140WH6-TJA1 | LG Display | 14.0 | 1366×768 |
| N140B6-D11 | Innolux | 14.0 | 1366×768 |
