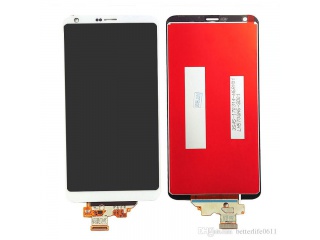

| Onderdeel nommer | LH570QH6-SD01 |
| Handelsmerk | LG Display |
| Grootte | 5.7 |
| Toepassing | Mobile Phone |
| Resolusie | 1440×2880 |
| Samestelling | Assembly , a-Si TF |
| Helderheid | |
| CR | 1500:1 |
| Kleure | 16.7M |
| Agterlig | 4S3P |
| Koppelvlak | MIPI |
| vervaardiger | LG Display |
| skerm grootte | 5.7 inch |
| pixel nommer | 1440(RGB)×2880 564PPI |
| aktiewe area (mm) | 64.8 × 129.6 (H×V) |
| ring area (mm) | - |
| helderheid | 500 cd/m² (Typ.) |
| kykhoek | 80/80/80/80 (Typ.)(CR≥10) |
| goeie uitsig by | Symmetry |
| kleurdiepte | 16.7M 85% NTSC |
| massa | 26.6±2.7g |
| herlaaitempo | 60Hz |
| sein tipe | MIPI (4 data lanes) , 54 pins Connector |
| spanningstoevoer | 1.8/3.3/5.5/-5.5V (Typ.)(VDDI/VPNL/DDVDL/DDVDH) |
| maks. graderings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| model naam | LH570QH6-SD01 |
| tipe skerm | Assembly , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 68.72 × 145.7 (H×V×D) |
| behandeling | Hard coating |
| kontras verhouding | 1500 : 1 (Typ.) (TM) |
| reaksie | 25 (Typ.)(Tr+Td) ms |
| werksmodus | - |
| agterlig | 4S3P WLED , No Driver |
| gebruik vir | Mobile Phone |
| raakskerm | PCAP |
