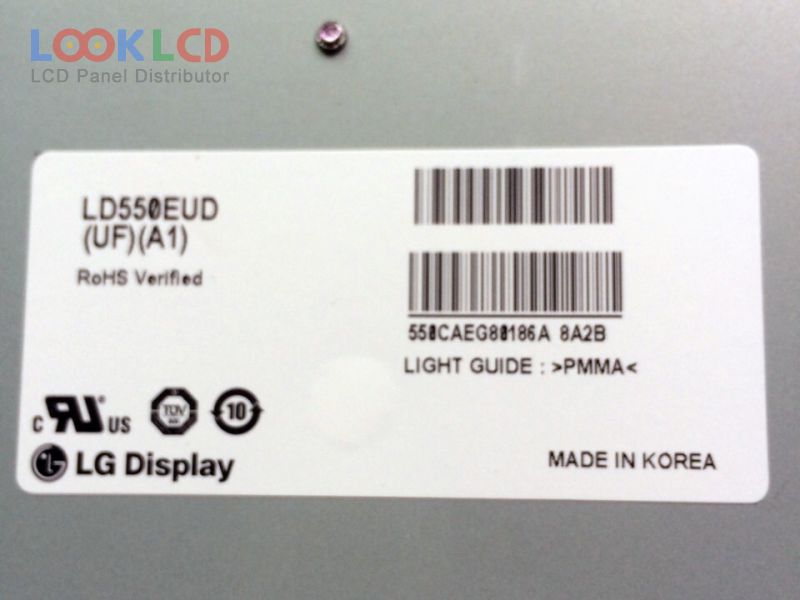

| Onderdeel nommer | LD550EUD-UFA1 |
| Handelsmerk | LG Display |
| Grootte | 55 |
| Toepassing | PID |
| Resolusie | 1920×1080 |
| Samestelling | LCM |
| Helderheid | 700 |
| CR | 1300:1 |
| Kleure | 1.07B |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | LG Display |
| paneel model | LD550EUD-UFA1 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 55 inch |
| resolusie | 1920(RGB)×1080 , FHD |
| vertoonmodus | IPS, Normally Black, Transmissive |
| aktiewe area | 1209.6×680.4 mm |
| buitelyn | 1239.2×710×23.8 mm |
| oppervlak | Antiglare (Haze 10%), Hard coating (3H) |
| helderheid | 700 cd/m² (Typ.) |
| kontras verhouding | 1300:1 (Typ.) |
| kleure vertoon | 1.07B (10-bit), CIE193172% |
| reaksie tyd | 12 (Typ.)(G to G) |
| kykhoek | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frekwensie | 120Hz+120Hz |
| tipe lamp | WLEDEmbedded (LED Driver) |
| sein koppelvlak | LVDS (4 ch, 8/10-bit), 92 pins |
| insetspanning | 12.0V (Typ.) |
| aansoek | PID |
