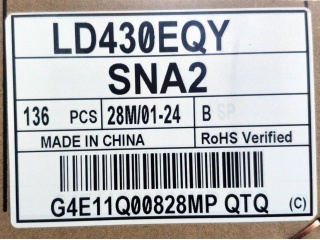

| Onderdeel nommer | LD430EQY-SNA2 |
| Handelsmerk | LG Display |
| Grootte | 43 |
| Toepassing | Digital Signage |
| Resolusie | 3840×2160 |
| Samestelling | CELL, a-Si TFT-LCD |
| Helderheid | |
| CR | 1100:1 |
| Kleure | 16.7M/1.07B |
| Agterlig | No |
| Koppelvlak | V-by-One |
| vervaardiger | LG Display |
| model naam | LD430EQY-SNA2 |
| skerm grootte | 43 inch |
| tipe skerm | CELL, a-Si TFT-LCD |
| pixel nommer | 3840(RGB)×2160 (UHD) 103PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 941.184 × 529.416 (H×V) |
| buitelyn (mm) | 953 × 543 × 1.3 (H×V×D) |
| ring area (mm) | - |
| behandeling | Antiglare (Haze 3%), Hard coating (2H) |
| helderheid | 0 cd/m² |
| kontras verhouding | 1100 : 1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Min.)(CR≥10) |
| reaksie | 6 (Typ.)(G to G) ms |
| goeie uitsig by | Symmetry |
| werksmodus | IPS, Normally Black, Transmissive |
| glas dikte | - |
| deurlaatbaarheid | 4.03% (Typ.)(with Polarizer) |
| kleurdiepte | 16.7M/1.07B 67% NTSC |
| agterlig | No B/L |
| massa | 1.10/1.20Kgs (Typ.) |
| gebruik vir | Digital Signage |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| bestuurder ic lys | Built-in COF 12 source chips |
| sein tipe | V-by-One 8 lane , Connector 51 pins |
| spanningstoevoer | 12.0V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
