| Onderdeel nommer | LD290EJN-FPN1 |
| Handelsmerk | LG Display |
| Grootte | 28.6 |
| Toepassing | Digital Signage Stre |
| Resolusie | 1920×540 |
| Samestelling | LCM , a-Si TFT-LCD |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | 4 |
| Koppelvlak | LVDS |
| vervaardiger | LG Display |
| skerm grootte | 28.6 inch (Native bar) |
| pixel nommer | 1920(RGB)×540 69PPI |
| aktiewe area (mm) | 698.4 × 196.425 (H×V) |
| ring area (mm) | 700.4 × 198.44 (H×V) |
| helderheid | 500 cd/m² (Typ.) |
| kykhoek | 89/89/89/89 (Min.)(CR≥10) |
| goeie uitsig by | Symmetry |
| kleurdiepte | 16.7M 72% NTSC |
| massa | 1.80/2.00Kgs (Typ./Max.) |
| herlaaitempo | 60Hz |
| sein tipe | LVDS (2 ch, 8-bit) , 51 pins Connector |
| spanningstoevoer | 12.0V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

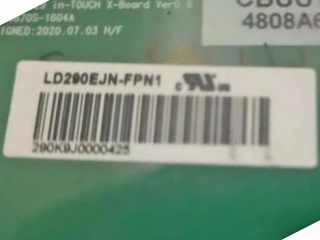

| model naam | LD290EJN-FPN1 |
| tipe skerm | LCM , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 712.8 × 213.74 (H×V×D) |
| behandeling | Antiglare, Hard coating (4H) |
| kontras verhouding | 1000 : 1 (Typ.) (TM) |
| reaksie | 6 (Typ.)(G to G) ms |
| werksmodus | IPS, Normally Black, Transmissive |
| agterlig | 4 strings WLED , 50K hours , No Driver |
| gebruik vir | Digital Signage Stretched Bar LCD |
| raakskerm | In-Cell Touch |
