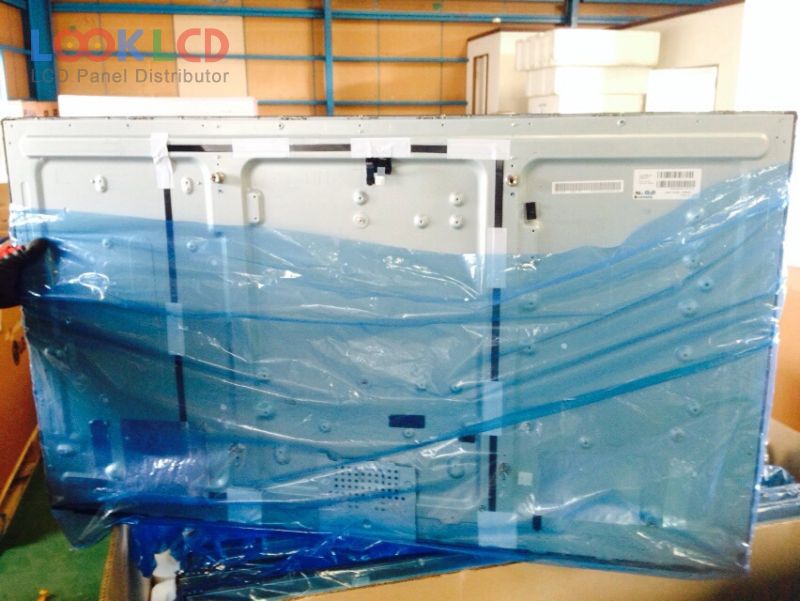

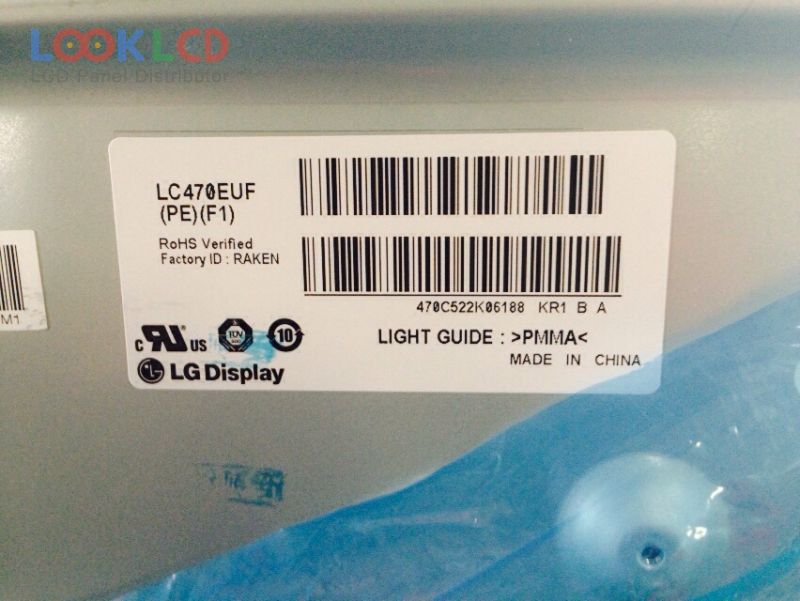

| Onderdeel nommer | LC470EUF-PEF1 |
| Handelsmerk | LG Display |
| Grootte | 47 |
| Toepassing | LCTV |
| Resolusie | 1920×1080 |
| Samestelling | LCM |
| Helderheid | 400 |
| CR | 1600:1 |
| Kleure | 16.7M/1.06B |
| Agterlig | WLED |
| Koppelvlak | LVDS |
| paneel handelsmerk | LG Display |
| paneel model | LC470EUF-PEF1 |
| paneel tipe | a-Si TFT-LCD , LCM |
| paneel grootte | 47 inch |
| resolusie | 1920(RGB)×1080 , FHD |
| vertoonmodus | S-IPS, Normally Black, Transmissive |
| aktiewe area | 1039.68×584.82 mm |
| buitelyn | 1059.5×616.2 mm |
| oppervlak | Antiglare (Haze 1%), Hard coating (2H) |
| helderheid | 400 cd/m² (Typ.) |
| kontras verhouding | 1600:1 (Typ.) |
| kleure vertoon | 16.7M/1.06B (8-bit / 8-bit + Dithering), CIE193172% |
| reaksie tyd | 5 (Typ.)(G to G); 8 (Typ.)(MPRT) |
| kykhoek | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| frekwensie | 120Hz |
| tipe lamp | WLEDWithout Driver |
| sein koppelvlak | LVDS (4 ch, 8/10-bit), 92 pins |
| insetspanning | 12.0V (Typ.) |
| aansoek | LCTV |
