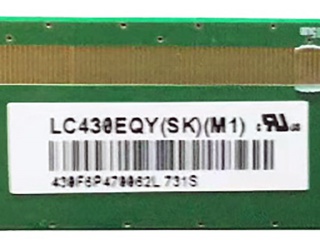

| Onderdeel nommer | LC430EQY-SKM1 |
| Handelsmerk | LG Display |
| Grootte | 43 |
| Toepassing | TV Sets |
| Resolusie | 3840×2160 |
| Samestelling | a-Si TFT-LCD, CELL |
| Helderheid | |
| CR | 1100:1 |
| Kleure | 1.07B |
| Agterlig | No |
| Koppelvlak | V-by-One |
| handelsmerk | LG Display |
| model | LC430EQY-SKM1 |
| diagonale grootte | 43 inch |
| tipe | a-Si TFT-LCD, CELL |
| pixel formaat | 3840(RGB)×2160 [UHD] 103PPI |
| konfigurasie | RGB Vertical Stripe |
| aktiewe area | 941.184(H)×529.416(V) mm |
| buitelyn dof. | 952.9(H)×543(V) ×1.3(D) mm |
| ring area | - |
| behandeling | Antiglare (Haze 3%), Hard coating (2H) |
| helderheid | 0 cd/m² |
| kontras verhouding | 1100:1 (Typ.) (TM) |
| kyk rigting | Symmetry |
| reaksie tyd | 6 (Typ.)(G to G) |
| kykhoek | 89/89/89/89 (Min.)(CR≥10) |
| bedryfsmodus | IPS, Normally Black, Transmissive |
| plaat dikte | - |
| oordrag | 4.35% (Typ.)(with Polarizer) |
| ondersteun kleur | 1.07B |
| Ligbron | No B/L |
| gewig | 1.5Kgs (Typ./Max.) |
| ontwerp vir | TV Sets |
| raamkoers | 60Hz |
| raakpaneel | Without |
| d-ic detail | COF Built-in 12 source chips |
| koppelvlak tipe | V-by-One 8 lane , 51 pins Connector |
| kragtoevoer | 12V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
