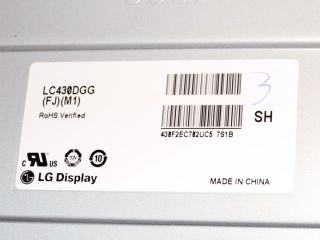

| Onderdeel nommer | LC430DGG-FJM1 |
| Handelsmerk | LG Display |
| Grootte | 43 |
| Toepassing | TV Sets |
| Resolusie | 38403×2160 |
| Samestelling | LCM, a-Si TFT-LCD |
| Helderheid | |
| CR | 1100:1 |
| Kleure | 1.07B |
| Agterlig | WLED |
| Koppelvlak | EPI |
| vervaardiger | LG Display |
| model naam | LC430DGG-FJM1 |
| skerm grootte | 43 inch |
| tipe skerm | LCM, a-Si TFT-LCD |
| pixel nommer | 3840(3)×2160 (UHD) 103PPI |
| reëling | RGBW Vertical Stripe |
| aktiewe area (mm) | 941.184 × 529.416 (H×V) |
| buitelyn (mm) | 965.6 × 558.1 × 53 (H×V×D) |
| ring area (mm) | 945.666 × 533.866 (H×V) |
| behandeling | Antiglare (Haze 3%), Hard coating (2H) |
| helderheid | 390 cd/m² (Typ.) |
| kontras verhouding | 1100 : 1 (Typ.) (TM) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| reaksie | 8/10 (Typ.)(Tr/Td) ms |
| goeie uitsig by | Symmetry |
| werksmodus | IPS, Normally Black, Transmissive |
| kleurdiepte | 1.07B 75% NTSC |
| agterlig | WLED , 30K hours , No Driver |
| massa | 6.1/6.4Kgs (Typ./Max.) |
| gebruik vir | TV Sets |
| herlaaitempo | 60Hz |
| raakskerm | Without |
| sein tipe | EPI , Connector 120 pins |
| spanningstoevoer | 12.7V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
