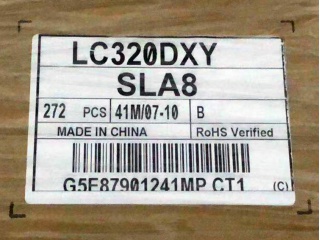

| Onderdeel nommer | LC320DXY-SLA8 |
| Handelsmerk | LG Display |
| Grootte | 32.0 |
| Toepassing | TV Sets |
| Resolusie | 1366×768 |
| Samestelling | CELL , a-Si TFT-LC |
| Helderheid | |
| CR | 1100:1 |
| Kleure | 16.7M |
| Agterlig | No |
| Koppelvlak | LVDS |
| vervaardiger | LG Display |
| skerm grootte | 32.0 inch |
| pixel nommer | 1366(RGB)×768 (WXGA) 49PPI |
| aktiewe area (mm) | 697.685 × 392.256 (H×V) |
| ring area (mm) | - |
| helderheid | 0 cd/m² |
| kykhoek | 89/89/89/89 (Min.)(CR≥10) |
| goeie uitsig by | Symmetry |
| glas dikte | - |
| kleurdiepte | 16.7M 72% NTSC |
| massa | 860/910g (Typ./Max.) |
| herlaaitempo | 60Hz |
| bestuurder ic lys | Built-in COF 2 source chips |
| sein tipe | LVDS (1 ch, 8-bit) , 30 pins Connector |
| spanningstoevoer | 12.0V (Typ.) |
| maks. graderings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| model naam | LC320DXY-SLA8 |
| tipe skerm | CELL , a-Si TFT-LCD |
| reëling | RGB Vertical Stripe |
| buitelyn (mm) | 715 × 411 × 1.2 (H×V×D) |
| behandeling | Antiglare (Haze 3%), Hard coating (2H) |
| kontras verhouding | 1100 : 1 (Typ.) (TM) |
| reaksie | 7 (Typ.)(G to G) ms |
| werksmodus | IPS, Normally Black, Transmissive |
| deurlaatbaarheid | 5.98% (Typ.)(with Polarizer) |
| agterlig | No B/L |
| gebruik vir | TV Sets |
| raakskerm | Without |
