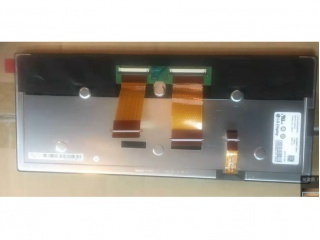

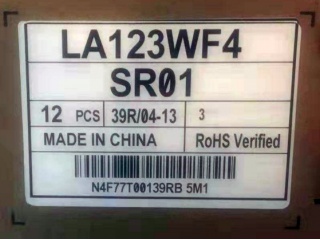

Onderdeel nommer | LA123WF4-SR01 |
Handelsmerk | LG Display |
Grootte | 12.3 |
Toepassing | Automotive Display |
Resolusie | 1920×720 |
Samestelling | a-Si TFT-LCD , LCM |
Helderheid | |
CR | 800:1 |
Kleure | 16.7M |
Agterlig | 8S6P |
Koppelvlak | |
paneel handelsmerk | LG Display |
paneel grootte | 12.3" |
resolusie | 1920(RGB)×720, 167PPI |
vertoon area | 292.032(W)×109.512(H) mm |
omtrek grootte | 310(W)×128(H) ×10.75(D) mm |
helderheid | 600 cd/m² (Min.) |
kykhoek | 89/89/89/89 (Min.)(CR≥10) |
beste uitsig op | Symmetry |
kleure vertoon | 16.7M 77% NTSC |
frekwensie | 60Hz |
gewig | 380/395g (Typ./Max.) |
paneel model | LA123WF4-SR01 |
paneel tipe | a-Si TFT-LCD , LCM |
pixel formaat | RGB Vertical Stripe |
ring opening | 296.03(W)×113.5(H) mm |
oppervlak | Hard coating |
kontras verhouding | 800:1 (Min.) (TM) |
vertoonmodus | IPS, Normally Black, Transmissive |
reaksie tyd | 30 (Max.)(G to G); 30 (Typ.)(MPRT) |
tipe lamp | 8S6P WLED , 10K hours , Without Driver |
raakskerm | Without |
aansoek | Automotive Display |
