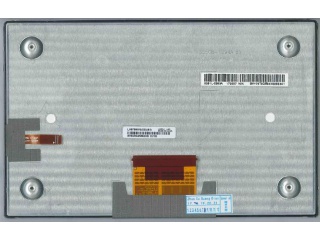

| Onderdeel nommer | LA070WV6-SD02 |
| Handelsmerk | LG Display |
| Grootte | 7.0 |
| Toepassing | Automotive Display |
| Resolusie | 800×480 |
| Samestelling | a-Si TFT-LCD , LCM |
| Helderheid | |
| CR | 1000:1 |
| Kleure | 16.7M |
| Agterlig | 5S2P |
| Koppelvlak | Parallel |
| paneel handelsmerk | LG Display |
| paneel grootte | 7.0" |
| resolusie | 800(RGB)×480, WVGA, 133PPI |
| vertoon area | 152.4(W)×91.44(H) mm |
| omtrek grootte | 166.6(W)×105.8(H) ×10.5(D) mm |
| helderheid | 610 cd/m² (Typ.) |
| kykhoek | 89/89/89/89 (Typ.)(CR≥10) |
| beste uitsig op | Symmetry |
| kleure vertoon | 16.7M 60% NTSC |
| frekwensie | 60Hz |
| paneel gewig | 180/185g (Typ./Max.) |
| sein koppelvlak | Parallel RGB (1 ch, 6-bit) , 66 pins FPC |
| insetspanning | 3.3/13.0/18.5/-7.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| omgewing | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| paneel model | LA070WV6-SD02 |
| paneel tipe | a-Si TFT-LCD , LCM |
| pixel formaat | RGB Vertical Stripe |
| ring opening | 155.0(W)×94.0(H) mm |
| oppervlak | Antiglare (Haze 25%), Hard coating (3H) |
| kontras verhouding | 1000:1 (Typ.) (TM) |
| vertoonmodus | IPS, Normally Black, Transmissive |
| reaksie tyd | 15/10 (Typ.)(Tr/Td) |
| tipe lamp | 5S2P WLED , 20K hours , Without Driver |
| raakskerm | Without |
| aansoek | Automotive Display |
