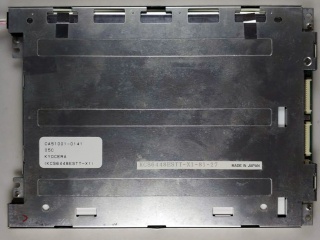

| Onderdeel nommer | KCS6448ESTT-X1 |
| Handelsmerk | Kyocera |
| Grootte | 7.7 |
| Toepassing | Industrial |
| Resolusie | 640×480 |
| Samestelling | LCM, CSTN-LCD |
| Helderheid | |
| CR | 20:1 |
| Kleure | Color |
| Agterlig | CCFL |
| Koppelvlak | |
| vervaardiger | Kyocera |
| model naam | KCS6448ESTT-X1 |
| skerm grootte | 7.7 inch |
| tipe skerm | LCM, CSTN-LCD |
| pixel nommer | 640(RGB)×480 (VGA) 103PPI |
| reëling | RGB Vertical Stripe |
| aktiewe area (mm) | 157.42 × 118.06 (H×V) |
| buitelyn (mm) | 199 × 147 × 10.5 (H×V×D) |
| ring area (mm) | 160.42 × 121.06 (H×V) |
| behandeling | Antiglare |
| helderheid | - |
| kontras verhouding | 20 : 1 (Typ.) (TM) |
| kykhoek | 50/50/40/30 (Typ.)(CR≥2) |
| reaksie | 160/80 (Typ.)(Tr/Td) ms |
| goeie uitsig by | - |
| werksmodus | STN, Normally Black, Transmissive |
| kleurdiepte | Color |
| agterlig | CCFL |
| massa | - |
| gebruik vir | Industrial |
| herlaaitempo | 75Hz |
| raakskerm | Without |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| AMS767KC04-1 | Samsung | 7.7 | 1280×800 |
| KCS077VG2EA-A43 | Kyocera | 7.7 | 640×480 |
| KCS6448HSTT-X3 | Kyocera | 10.4 | 640×480 |
| KCS6448MSTT-X1 | Kyocera | 7.2 | 640×480 |
| LM8V301 | SHARP | 7.7 | 640×480 |
| LM8V302 | SHARP | 7.7 | 640×480 |
| LM8V302H | SHARP | 7.7 | 640×480 |
| LM8V31 | SHARP | 7.7 | 640×480 |
| LM8V311 | SHARP | 7.7 | 640×480 |
| LTM07C757 | TOSHIBA | 7.7 | 400×234 |
