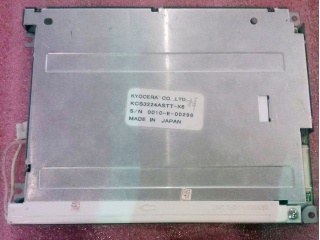

| Onderdeel nommer | KCS3224ASTT-X6 |
| Handelsmerk | Kyocera |
| Grootte | 5.7 |
| Toepassing | Industrial |
| Resolusie | 320×240 |
| Samestelling | CSTN-LCD , LCM |
| Helderheid | |
| CR | 25:1 |
| Kleure | Color |
| Agterlig | - |
| Koppelvlak | Parallel |
| handelsmerk | Kyocera |
| diagonale grootte | 5.7 inch |
| pixel formaat | 320(RGB)×240 [QVGA] 70PPI |
| aktiewe area | 115.2(H)×86.4(V) mm |
| helderheid | - |
| kyk rigting | - |
| kykhoek | 50/50/30/30 (Typ.)(CR≥2) |
| ondersteun kleur | Color |
| gewig | - |
| raamkoers | 75Hz |
| koppelvlak tipe | Parallel Data (1ch, 8-bit) Connector |
| kragtoevoer | 5.0V (Typ.) |
| omgewing | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | KCS3224ASTT-X6 |
| tipe | CSTN-LCD , LCM |
| konfigurasie | RGB Vertical Stripe |
| buitelyn dof. | - |
| kontras verhouding | 25:1 (Typ.) (TM) |
| reaksie tyd | 220/110 (Typ.)(Tr/Td) |
| bedryfsmodus | STN, Normally Black, Transmissive |
| Ligbron | |
| ontwerp vir | Industrial |
| raakpaneel | Without |
